High Performance Sanitary Check Valve , Stainless Check Valve DN25-DN100

DN25-DN100 304 or 316L Stainless Steel Sanitary Non-return Check Valve

Brief Description:

Sanitary check valve is also called non-return valve. It is installed in a pipeline system to keep fluid from flowing backwards. These pipeline components are commonly equiped in production lines of beverage, breweries, water treatment, food and pharmaceutical applications. The surface of our check valves is smooth and seamless suitable for steam and CIP cleaning.

Features:

• Valve core uses spring to return, rapid open and close
• Use the pressure for automatically opening and closing, convenient and quick
• Valve core slide equipped with a guide structure, fast return to position
• Taperd surface sealing, firmly sealed
• Valve diameter and pipe diameter are equal to ensure large flow

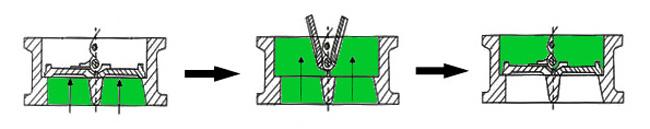

Working Principle:

Check valve is normally closed. When the pressure of the lower part of the valve stem exceeds that of the upper part of spring pressure, the valve disc open automatically, letting the fluid flow through the valve, until the pressure of both end return to balance. Then the valve disc close to prevent the medium flowing backwards.

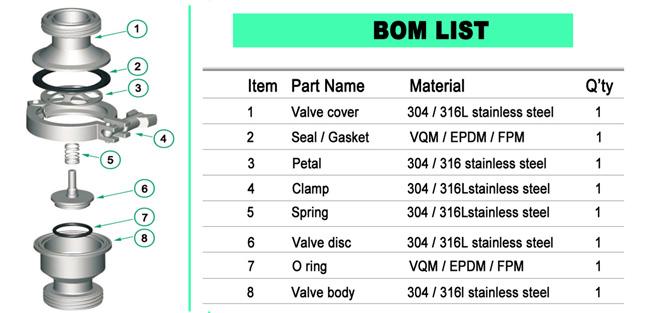

Configurations:

Specifications:

Check Valve Photos

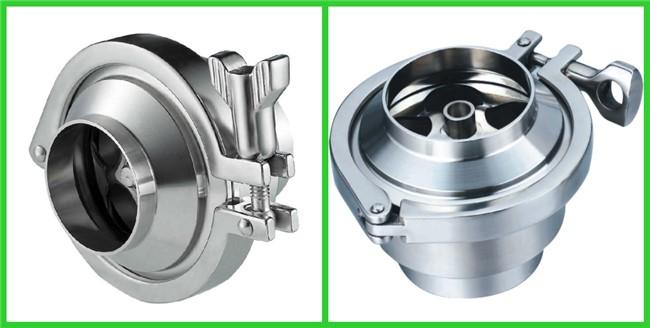

Butt Weld Connection Type

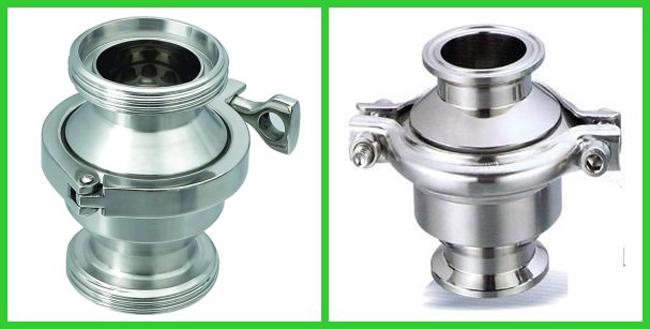

Thread and Clamp Connection Type

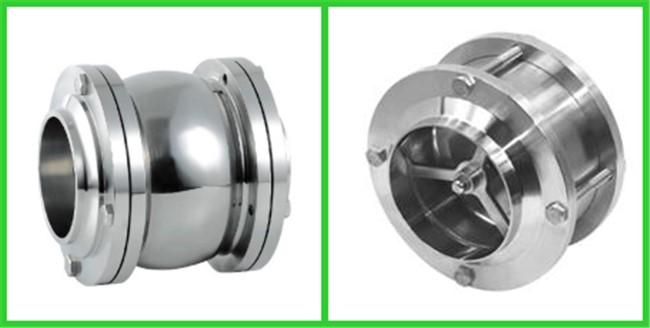

Ball Type Check Valve
