Three Piece Sanitary Ball Valves Stainless Steel 304 Or 316L With High Mounting Pad
304 or 316L Sanitary Hygienic Stainless Steel Three Piece Ball Valves With High Mounting Pad
Quick Details:
- Consists of three detachable body covers for easy installation and unloading
- Equiped with high mounting pad, suitable for both manual hand and actuator
- High mounting pad dimensions comply to ISO 5211 standard
- All kinds of connection ends available like clamp, butt weld, thread, flange
Design Highlights:

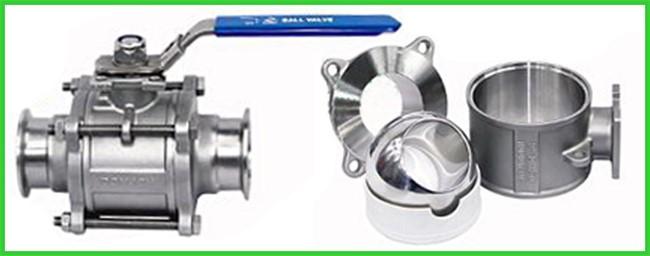

1. Three detachable valve body parts, more convenient for maintaince and repair compared to one piece and two piece ball valves

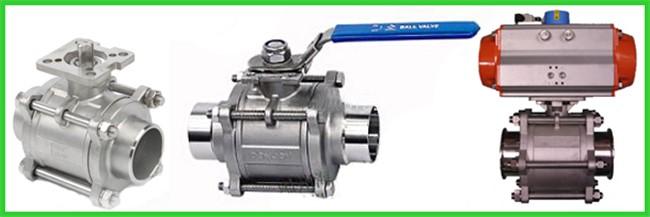

2. The high mounting platform pad allows free switch between different operation modes, and no need to add hanger frame when changing to pneumatic actuators

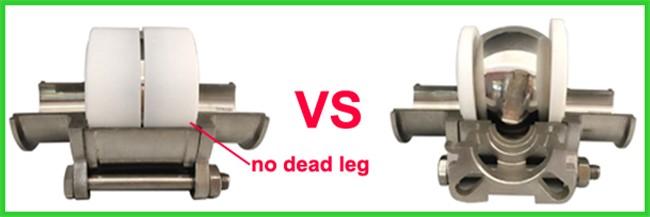

3. The ball core is fully encapsulated by sealing gasket, leading to high sealing performance.
Our Quality Control Methods:
1. We do visual inspection on each finished valves before packing
2. We reverify stainless steel grade by spectrometer
3. We do sample dimension inspection
4. We do roughness detection to ensure surface quality
5. We do 100% leakage test on each valve
Main Spec.:
1. Ends type: Thread, union, clamp, butt weld, flange, or custom-made on request
2. Mateiral:ASTM A351 CF8M,CF8,CF3M,CF3,316,316L,304,304L ASTM A216-WCB
3. Size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2",2-1/2" ,3" ,4"
4. Working pressure: 10 bar
5. Working temperature: -20 ~ 180 °C (PTFE)
6. Working medium: Food, Beverage, Wine, Beer, Water, Gas, Acid, Steam,etc
Applications:
This kind of valve has strong flow function especially for thick or sticky fluids like food, pharmacy, cosmetics and chemical.
