Pneumatic Actuated Two Way Ball Valve SS 316L 2 Way Ball Valve

Sanitary Hygienic Pneumatic Actuated Two Way Ball Valve

Applications:

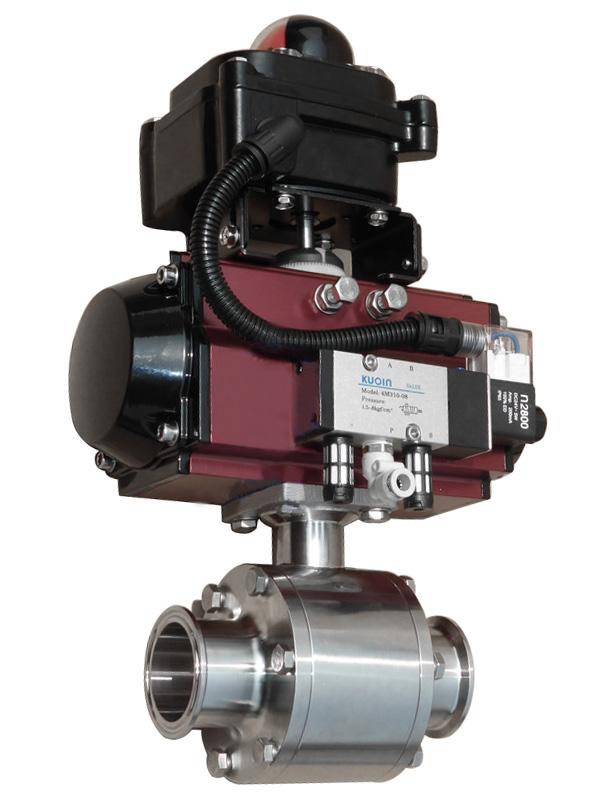

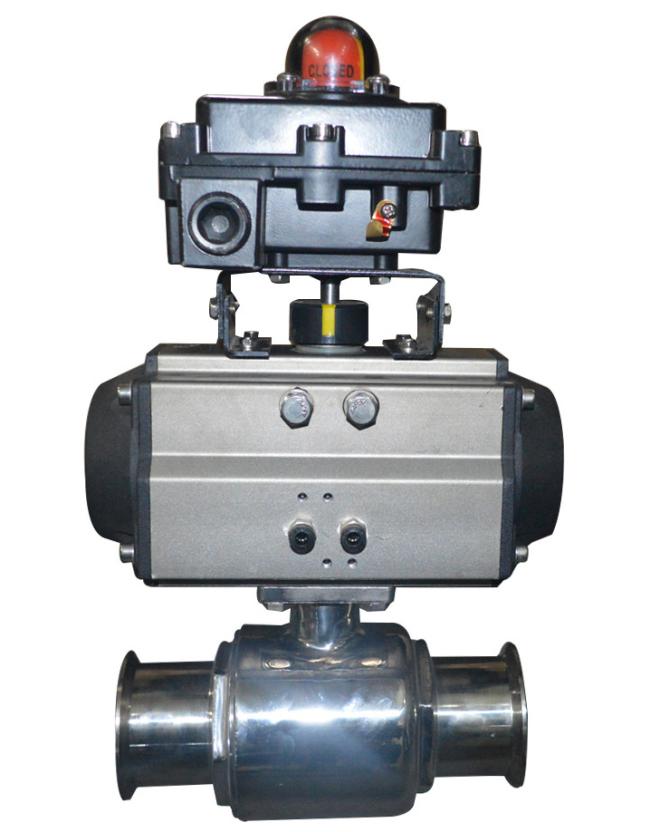

Sanitary Hygienic Pneumatic Actuated Ball Valves are designed to let the fluid flow or stop completely. It has a vertical stainless steel actuator or horizontal aluminum actuator on top of the valve body. The compressed air enters and exhausts from the actuator to drive the valve to open and close automatically.

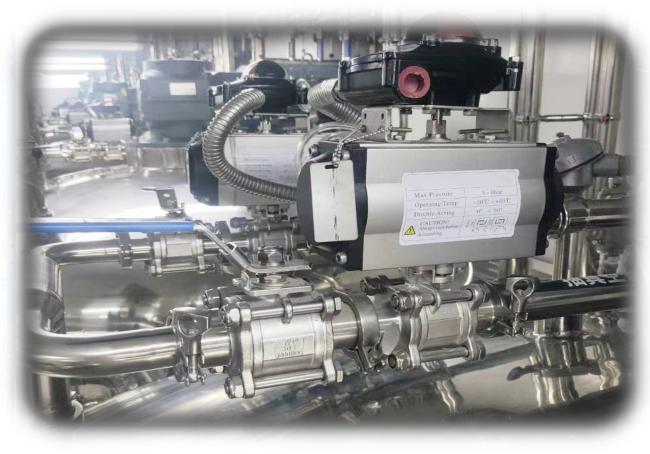

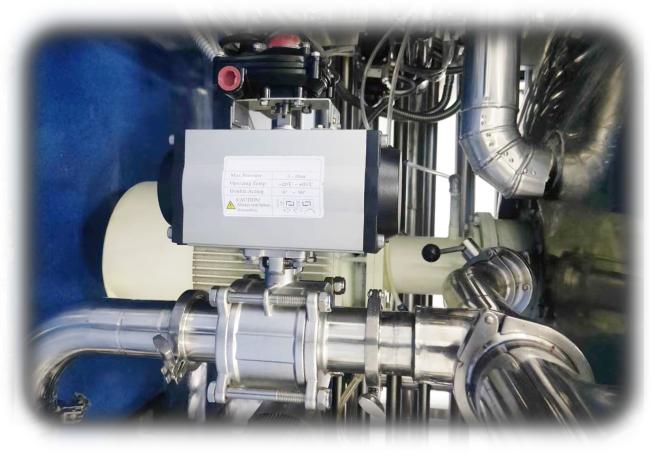

We utilize 304 and 316L stainless steel materials to make the valve meet hygienic grade requirements. This makes it an extremely popular fluid flow control component in all kinds of production pipeline systems for the production of food, dairy, beverage, wine, pharmaceutical and chemical fluids.

Configurations:

Working Principle:

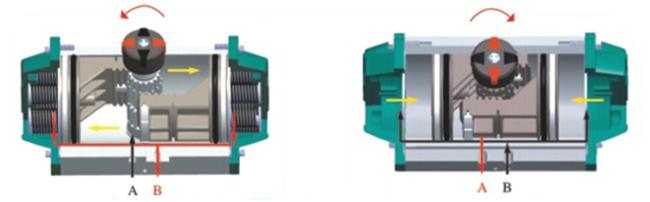

1. Spring return single acting pneumatic actuator

When compressed air enter into port A, pistons are forced outwards, making the pinion and valve stem rotate anticlockwise, the valve is open accordingly when air is exhausted from port B

When air pressure at port A is exhausted, springs forces the pistons inwards, making pinion turn clockwise, the valve is closed.

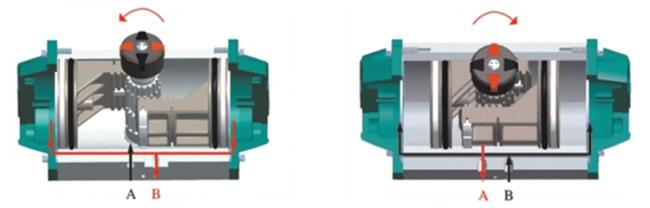

2. Air / air double acting pneumatic actuator

Compressed air enters the chamber from port A, forces the pistons outwards, the pinion rotate anticlockwise, and valve is open

Compressed air enters the chamber from port B, forces the pistons inwards, the pinion turn clockwise and valve is closed

Specifications:

Valve Model Selection:

Automation Control Options

To make the valve work more automatically and intelligently, besides pneumatic actuation system, you also have more choices of different kind of automation control accessories as below:

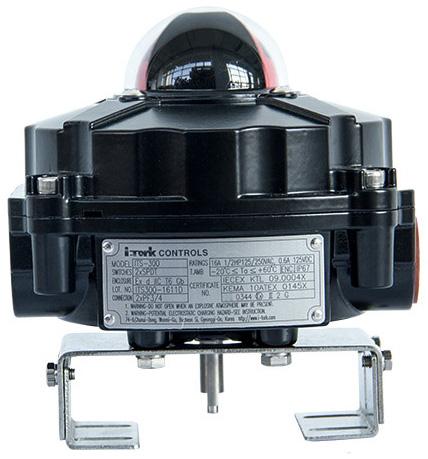

Intelligent Control Unit	Limit Switch	Solenoid Valve	Switch prompt feedback
0/4 – 20mA 0 – 5 / 10V signal	Build-in two passive contact switch	AC 220V; DC 24V	Build-in float switch
