6 Inch 1 Inch 3 Way Ball Valve Stainless Steel 316L 304

Sanitary Pneumatic Three Way Ball Valve

Valve Body

Nominal diameter: DN15-100

Valve body material: 304 / 316L stainless steel

Connection end: male thread, female thread

Thread spec.: NPT, G, PT, BSP

Thread dimension standard: ASME BPE, BS4825-4, DIN11853-1, DIN11864-1

Valve Accessories

Seat seal: PTFE: -20°~180℃

Ball core material: 304 or 316L stainless steel

Stem material: SS304

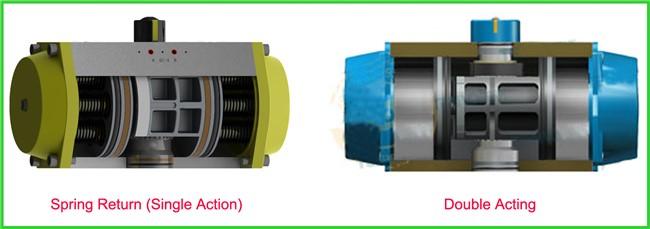

Pneumatic Actuator

Double acting: Air to open, air to close, air supply failure to keep the current position

Single acting air to open type: Air to open, interrupt air to close, air failure to close

Single acting air to close: Air to close, interrupt air to open, air failure to open

Optional choice: Reversing solenoid valve, limit switch box, air filter reducing valve, positioner, handle manual, lock up valve

Working Principle:

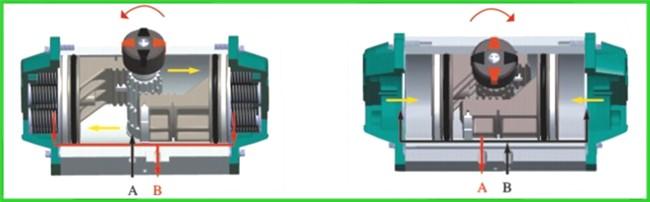

1. Spring return single acting pneumatic actuator

When compressed air enter into port A, pistons are forced outwards, making the pinion and valve stem rotate anticlockwise, the valve is open accordingly when air is exhausted from port B

When air pressure at port A is exhausted, springs forces the pistons inwards, making pinion turn clockwise, the valve is closed.

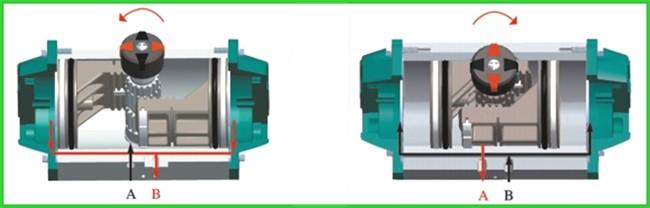

2. Air / air double acting pneumatic actuator

Compressed air enters the chamber from port A, forces the pistons outwards, the pinion rotate anticlockwise, and valve is open

Compressed air enters the chamber from port B, forces the pistons inwards, the pinion turn clockwise and valve is closed

Flow Direction Diagram:

We produce both T-type and L-type sanitary three way ball valves. The T-type sanitary valve can connect three pipes in order to converge or divide fluid flows. The L-type valve can only connect two pipes in a pipeline for flow direction change purposes.
