Pharmaceutical Tri Clover Sample Valve Manual Sanitary Sample Port

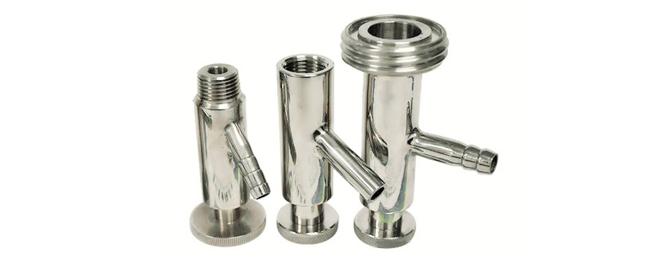

Sanitary Hygienic Manual Sampling / Sample Valve
Applications:

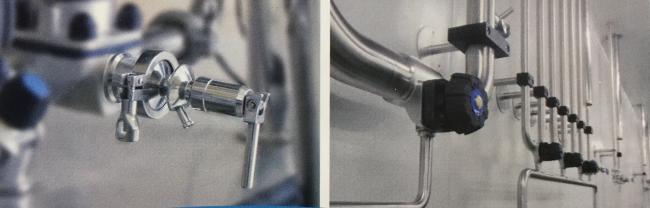

Sanitary hygienic manual sampling / sample valves are mainly used to extract fluid medium sample during the production process of food, beer, wine, diary, beverage, pharmaceutical fluids, biotechnological fluids, purified water and many other hygienic industry applications. The extracted samples can be used for testing, inspection, or supervision of medium status on the production line.
Working Principle:

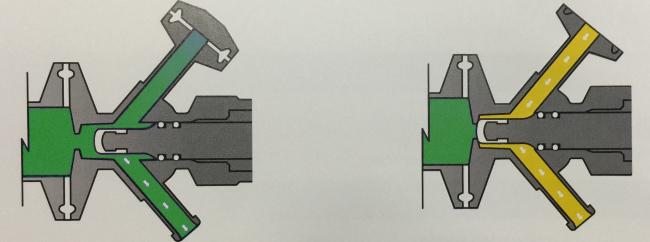

The sanitary manual sampling / sample valve is normally closed. When extracting sample, simply lift the handle or turn the knob, and the valve stem and diaphragm are retracted, then fluid flows out for sample collecting. Flow speed can be controlled by manual handle.

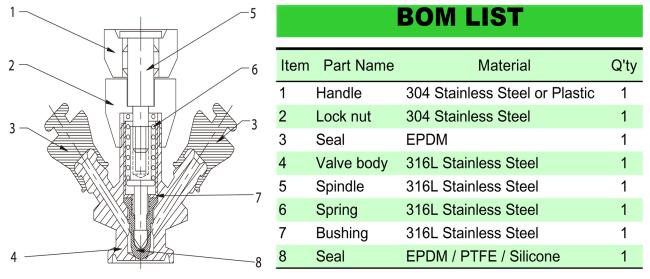

Configuration:
Specification Details:
| Drive Mode | Manual lift handle or turning knob |
| Working Pressure | 0 ~ 8bar |
| Nominal Pressure | 16 bar PN |
| Size | 1/4”, 3/8”, 1/2”, 3/4”, 1” |
| Valve Body Material | SS304 or SS316L |
| Sealing Material | PTFE, VMQ, EPDM |
| Working Temperature | -20 ~ +120℃(EPDM seal) / 130℃(PTFE seal) |
| Connection End | Butt weld, clamp or male female thread |
| Body Structure | Single branch port; double branch ports(for sterilization) |
| Surface Treatment | Mechanical polishing, electrolytic polishing |
| Surface Finish | Ra<1.6μm |
