Intelligent Sanitary Pressure Relief Valve For Pipeline System Protection

Intelligent Stainless Steel Sanitary Safety Valve for Pipeline System Protection in Hygienic Industry

Quick Details:

• Also known as pressure relief valve
• Used to protect the whole pipe system from damage under over flow
• Automatically relieve excessive medium under over flow pressure
• Keep flow pressure at the set level
• Easy to adjust with a very wide calibration range

Highlights:

• 15 years + of sanitary valve production experience
• Widest pressure limit range
• Automatic open and close, easy to install and maintain
• Suitable for pneumatic cleaning, heating cleaning, leak detection of water seal
• Small orders acceptable

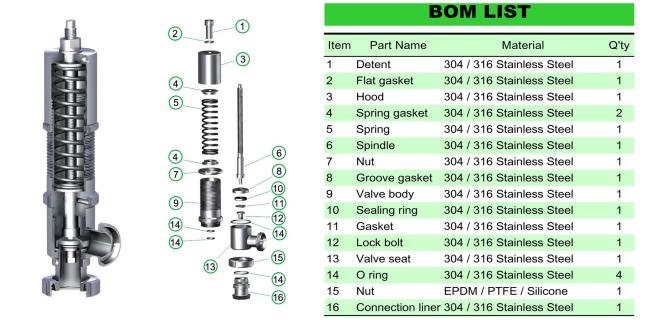

Structure:

Working Principle:

1. Adjust the spring, compress the nut and set a pressure valve

2. Close the valve

3. When the pressure of the pipeline or tank exceeds the set value, the valve opens automatically

4. The medium is discharged through the safety valve

5. Thre pressure of pipeline or tank returns to normal value

6. The spring force automatically pushes back the valve seat

7. The valve automatically closes

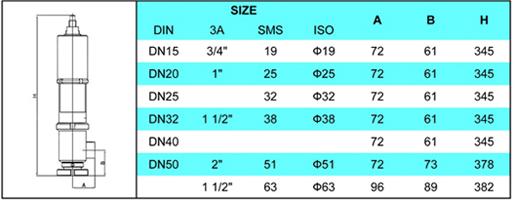

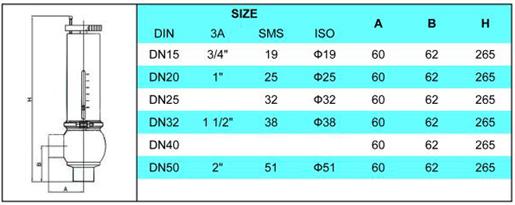

Specification Details:
