Stainless Steel Sanitary Pipe Fittings Bends Pipe Fitting High Pressure Resistant
304 or 316L Stainless Steel DN10 ~ DN300 Sanitary Bends Pipe Fittings
Brief Introduction:
Sanitary bends, also called elbows, are stainless steel pipe fiitings used to change the direction of the pipeline. They are produced according to 3A, DIN, ISO, IDF, ASME BPE, SMS standard pipelines, making them popular in a wide range of production lines in food and hygienic industries.
Highlights:
- Advanced surface finish technology
- 304 and 316L stainless steel with excellent anti-corrosion properties
- High pressure resistant and extreme temperature durability
- Various surface treatment techniques available: mirros polished, chrome plated, brushed, acid washing and electroplated
Main Types:
We have many types of sanitary bends pipe fittings, classified according to below categories:
| By manufacturing technology: | sanitary forged bend / elbow, sanitary casting bend / elbow |
| By connection type: |
sanitary clamp bend / elbow, sanitary welded bend / elbow, sanitary flanged bend / elbow, sanitary union bend / elbow, sanitary threaded bend / elbow |
| By bending angle: | sanitary 45 degree bend / elbow, sanitary 90 degree bend / elbow, sanitary 180 degree return bend / elbow |
| By standard: |
3A pipe fitting sanitary bend / elbow, ISO pipe fitting sanitary bend / elbow, DIN pipe fitting sanitary bend / elbow, ASME BPE pipe fitting sanitary bend / elbow, SMS pipe fitting sanitary bend / elbow, food grade sanitary bend / elbow |
| By radius and shape: | Sanitary stainless steel long bend / elbow, sanitary stainless steel short bend / elbow, sanitary stainless steel bend /elbow with straight end |
Specifications:
| Application | Standard | Connection Ends | Size Range |
| 3A pipe fitting | 3A | Weld, clamp | 1" ~ 6" |
| AS1528 weld pipe fitting | AS1528 | Weld | 1" ~ 6" |
| BS4825 weld pipe fitting | BS4825 | Weld | 1" ~ 4" |
| DIN weld pipe fitting | DIN | Weld | DN10 ~ DN300 |
| DIN clamp pipe fitting | DIN | Clamp, union | DN25 ~ DN150 |
| ASME BPE pipe fitting | ASME | Weld, Clamp, or Clamp-Weld | 1/4" ~ 6" |
| IDF / ISO pipe fitting | IDF, ISO | Weld, clamp, thread, union | 25.4 ~ 101.6, 1"~4" |
| SMS pipe fitting | SMS | Thread, union | 1"~4" |

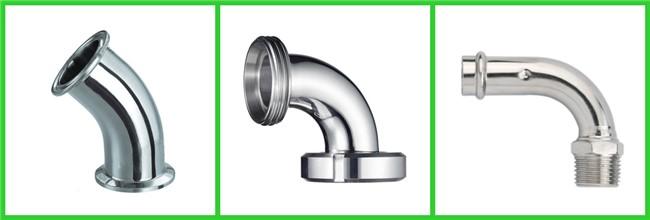

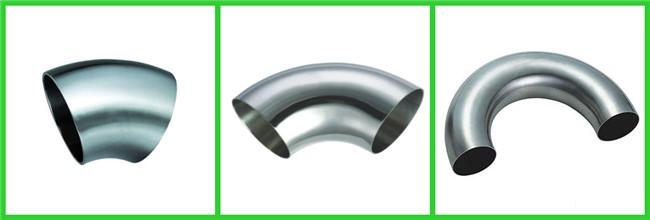

Product Display:
