Special design Tank Bottom Ball Valve Port Diameter 1/2" - 4" , Manual Type
Port Diameter 1/2" - 4" Manual Type Sanitary Hygienic Stainless Steel Tank Bottom Ball Valve
Quick Details:
- Installed at the bottom of a sanitary tank for medium sampling or draining
- Suitable for most tanks with dish, flat, oval, or ball bottom shapes
- One side connected to tank bottom, the other side connected to pipe systems
- Connection ends like clamp, flange, butt-weld or thread are all available
- Special design of sealing wier close to tank wall, to avoide dead area at tank bottom
- Applicable to most hygienic industries like food, beverage, brewery, water and pharmacy

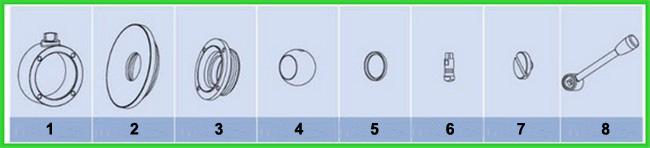

Main Parts:
1. Valve body: 304 or 316L stainless steel, forged or casting
2. Seal wier: 304 or 316L stainless steel, forged or casting
3. Valve cover: with different kinds of connection ends
4. Ball cord: forged 304 / 316 stainless steel
5. Sealing gasket: PTFE
6. Valve stem: 304 stainless steel
7. Mounting bolts
8. Manual handle
Competitive Advantages:
1. Compact structure design to save space
2. No dead area or leg, automatic self-draining ability
3. Applicable to CIP and SIP process and sterilization under high temperature
4. Valve surface roughness reaches to 0.28μm
Specifications:
| Material: | 304 / 316L stainless steel and FDA approved PTFE seal |
| Port Size: | 1/2"~4", DN10~DN100 |
| Working Pressure: | 0 - 10 bar |
| Working Temp.: | -40 - 140 degrees centigrade |
| Seal Material | PTFE |
| Surface Treatment: | Outside surface sand blasting, inner surface Ra<0.5um |
| Connection Ends: | Clamp, thread, flange or butt-weld |
| Connection Dimension Standards: | ISO, DIN, ASME BPE, 3A, BS |
| Drive Mode: | Manual Handle |

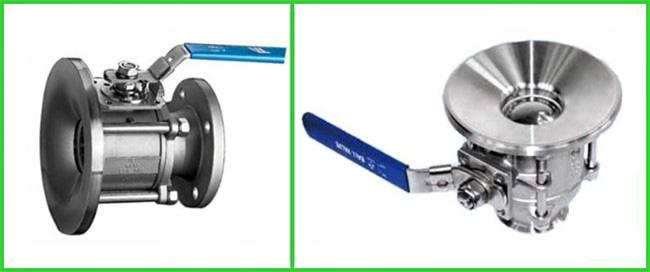

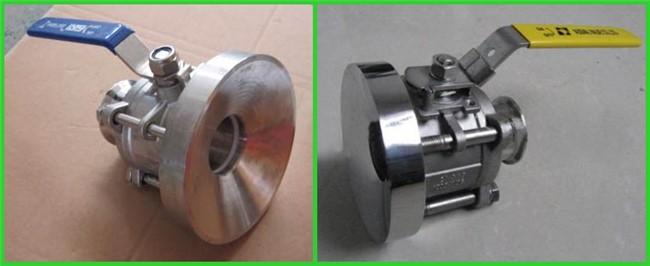

Product Show:
