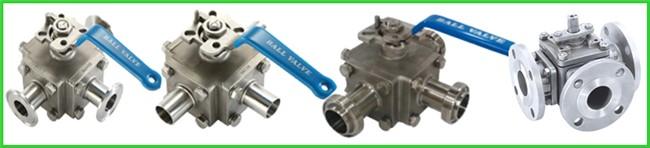

Sanitary Full Bore Ball Valve Clamp / Thread / Weld / Flange 3 Way , Non Retention
Stainless Steel Sanitary Clamp/Thread/Weld/Flange Three Way Full Bore Non Retention Ball Valves
Technical Design Advantages:

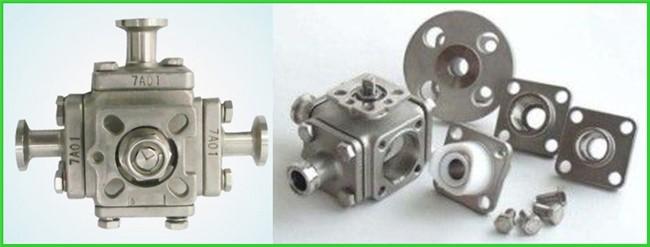

1. Detachable valve body parts, easy installation, easy assembly, much more convenient for daily pipeline repair and maintainance
2. Full bore structure, to achieve as large flow ability as possible

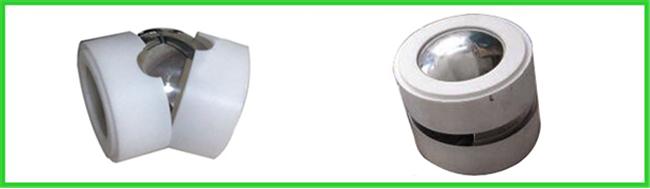

3. PTFE seal completely encapsulates the ball core, to prevent the ball cavity from any retention of fluid
4. Free choice of connection end, can be butt weld, clamp, thread, and flange
5. High mounting pad with ISO5211 standard dimension, suitable for any manual handle or pneumatic actuators
Valve Surface Treatment:
We offer different kinds of surface treatment techniques for your choice:
1. MP (mechanic polish) to make the surface bright
2. EP (eletric polish) to reach a perfect surface roughness value
3. Acid cleaning to strengthen anti-corrosion ability
4. Bright anealing to increase the mechanical properties
Torque Spec.
| Size | 1/2"-3/4" | 1"/DN25 | 1.25"/DN32 | DN40 | 2"/DN50 | 2.5"-3" | DN65 | DN80 | 4"/DN100 |
| Torque N.M. | 10 | 15 | 20 | 25 | 35 | 50 | 75 | 95 | 120 |
