Multiple Position Sanitary Manual Butterfly Valves with Plastic Gripper Handle
Price:
Negotiable
MOQ:
> 1 pc
Delivery Time:
Within 7 working days
Brand:
WLM
Product Description
Sanitary Hygienic Multiple Position Manual Butterfly Valves Plastic Gripper Handle
Features:
- Very wide adjust range of port size from 1/4" to 8"
- Especially popular for big sizes > DN50
- Open and close to adjust medium flow with lowest cost
- Strong flow ability for thick fluids or flows with particles
- Operated by plastic gripper handle with 12 position gears
- Connection ends can be clamp, weld, thread, union or flange
- Meet connection standards DIN, 3A, SMS, ISO, IDF, BS, ASME BPE
Working Principle:
1. This type of sanitary butterfly valve is operated by a manual plastic gripper handle, saving much cost against pneumatic ones.
2. The gripper handle has 12 multiple position gears, simply pull the handle to any gear, to control the medium flow upon your need.
Specifications:
| Port Size | DN10-DN200 , 1/4" - 8", or custom on request |
| Operation Mode | Manual gripper handle |
| Raw Material |
Body: SUS304, SUS316L forged Gasket: EPDM, PTFE, etc. |
| Working Temperature | -10 to +100 degrees centigrade |
| Working Pressure | Up to 10 bar |
| Dimension Standard | ISO, DIN, IDF, 3A, SMS etc. |
| Medium | Beer, red Wine |
| Surface Treatment | Mirror Polish |

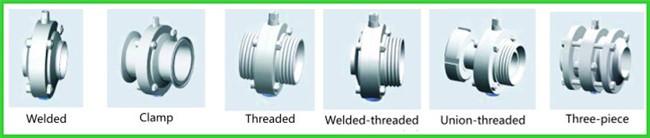

Connection Types:
We have different types of hygienic wine tank flanged butterfly valves with different connection ends as below:
