Multiple Position Gripper Sanitary Butterfly Valve Adjustable ISO / DIN Connection Ends
dSanitary Hygienic Stainless Steel Adjustable Multiple Position Gripper Butterfly Valves ISO / DIN Connection Ends
Product Description:
Valve body: 2 symmetrical valve covers, made of 304 or 316 forged stainless steel to avoid leakage problem
Valve disc: Flat round board, rotated together with valve stem to control the opening stage of valve
Gasket: made of EPDM, PTFE, Viton, or othe material on request, the key component to ensure sealing performance of the butterfly valve
Operation Handle: gripper handle, made of stainless steel, manual type
Gear: 12 multiple positions
Mounting kits: 304 stainless steel bolts and nuts, to mounting all valve parts
Design Highlights:
1. Stainless steel gripper handle: strong, long lifetime, suitable for frequent opening-close operation
2. Adjustable gears: 12 gears for free choice, making the flow control range much wider
Specifications:
| Port Size | DN10-DN200 , 1/4" - 8", or custom on request |
| Operation Mode | Manual gripper handle |
| Raw Material |
Body: SUS304, SUS316L forged Gasket: EPDM, PTFE, etc. |
| Working Temperature | -10 to +100 degrees centigrade |
| Working Pressure | Up to 10 bar |
| Connection Ends | Clamp, flange, union, thread, butt weld or on request |
| Dimension Standard | ISO, DIN, IDF, 3A, SMS etc. |
| Medium | Beer, red Wine |
| Surface Treatment | Mirror Polish |

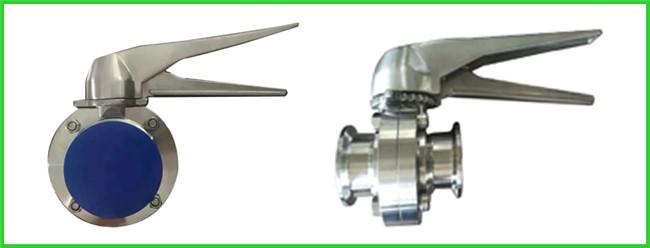

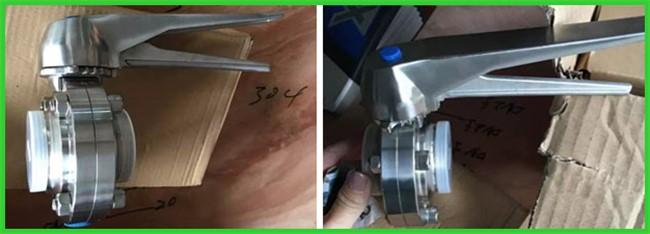

Product Show:
