Quick Install Tri Clamp Butterfly Valve For Wine Industries , ISO / DIN / BS Approved
ISO / DIN / BS Stainless Steel Sanitary Hygienic Pull Handle Tri Clamp Connection Butterfly Valves
Working Principle:
The valve is regulated in 4 gears. Simply pulling the handle to gear, the valve stem and flat round disc will rotate accordingly, which will make the valve open or close to control the flow rate of fluids or gas medium
Highlights of Clamp Connection End:

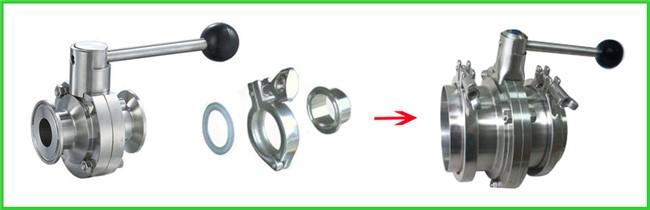

1. The valve can be easily clamped with another clamp liner which will be welded on pipes
2. Simply detach the clamp, then the valve can be removed from the pipe
3. This connection way brings much convenience in daily repair and maintainance
4. The clamp end dimension strictly follows standards ISO 2852, DIN 32676, DIN 11864, DIN 11853, BS4825, SMS 3017
Specifications:
| Material: | 304 or 316L forged stainless steel |
| Standard: | 3A, SMS, DIN, ISO, BS |
| Size: | 1" - 6" or DN25 - DN150 |
| Connection end: | Clamp |
| Operated by | 4 gears pull rod handle |
| Seal Material: | Silicone, EPDM, Viton, NBR |
| Surface Finish: | Ra≤0.8 |
| Working Temperature: | -10 degree to +120 degree (EPDM) |
| Working Pressure: | 0.2-10 Bar (DN25-DN100), 0.2-8 Bar (DN125-DN150) |
Applications:
This is a kind of sanitary grade butterfly type valve, installed in stainless steel pipeline by clamp connection, to control flow rate of hygienic fluild and gas in food, beverage, wine, chemical, pharmacy, dairy, comestics, water industries.
