Sanitary Hygienic Pull Rod Manual Butterfly Valves With Union Connection Ends
Sanitary Hygienic Pull Rod Manual Handle Butterfly Valves With Union Connection Ends
Raw Materials:
1. Valve body: Forged 304 or 316L stainless steel, high density, highly sanitary grade
2. Manual handle: Stainless steel handle with nylon sleeve or handle ball
3. Seal gasket: EPDM, high temperature resistant, anti-aging and anti-corrosion

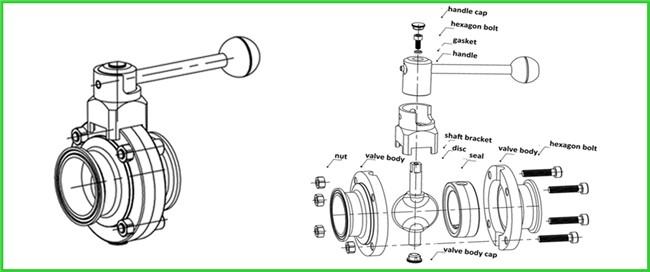

Structures:
Highlights of Union Connection End:
1. Very sientific connection design with high sealing function
2. High mechanical property to withstand strong force
3. Fast connection and disassembly, saving time
4. Exteremely convenient for daily repair and maintainance
Union Connection End Dimension Standards:
1. ISO 2853: ISS / IDF Hygienic stainless steel couplings for food applications
2. DIN 11851: Unions screwed pipe fittings for food chemical and pharmaceutical industry
3. DIN 11853-1: Hygienic pipe screw connections, short type
4. DIN 11864-1: Aseptic screwed pipe connection for welding type union
5. BS 4825 PART 4: IDF / ISS Hygienic stainless steel thread couplings for food applications
Specifications:
| Driving Mode: | 4 Gear pull rod handle |
| Connection End: | Unions |
| Size: | 1" ~ 8", DN25 ~ DN200, all other sizes can be customized |
| Material: | SUS304, or SUS316L |
| Gasket: | Free choice among EPDM, PTF E, FPM or NBR |
| Working Pressure: | Low Pressure (Pn<1.6mpa) |
| Working Temperature: | -10℃ ~ +95℃ |
| Surface Process: | Matte or mirror Polishing 180#/240/320/400 |
| Connection Standard: | ISO 2853, DIN 11851, DIN 11853-1, DIN 11864-1, BS 4825-4 |

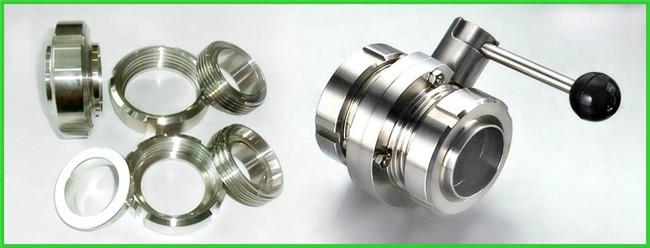

Product Show:
