ASME BPE Butt Welded Butterfly Valve SS Pneumatic Actuator Powered , Double Acting
Price:
Contact us for a competitive quote
MOQ:
Sample order accepted
Delivery Time:
1 - 2 weeks
Brand:
WLM
Product Description
ASME BPE Stainless Steel Pneumatic Actuator Powered Sanitary Butt - welded Butterfly Valves
Characteristics:
- Simple and compact butterfly structure design
- Large flow capability especially for big sized pipelines
- Stainless steel pneumatic actuator provides strong and long lifetime operation
- Optional between spring return or double acting with normal close or normal open mode
- Weld connection makes the valve connected with pipeline more firmly without any leakage problem or any dead area for fluids retention

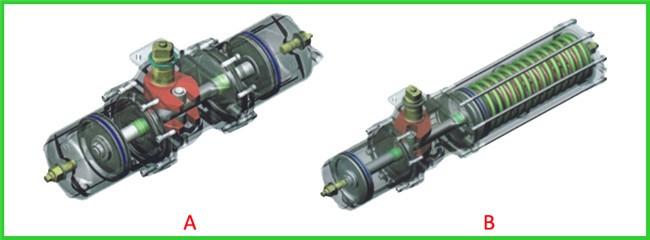

Working Principle:
A. Double acting: Air in--Piston outwards--Valve stem rotates--Valve open--Air in again-- Piston backwards--Valve closed
B. Spring return: Air in--Piston outwards--Valve stem rotates--Valve open--Piston backwards automatically by spring--Valve closed
Technical Data:
| Actuator: | Stainless Steel pneumatic actuator |
| Operation mode: | Spring return, double acting |
| Size: | DN25 ~ DN200 |
| Body Material: | 316L, 304 |
| Seal Material: | PTFE |
| Working Pressure: | 0 ~ 8 bar |
| Working Temperature: | -20℃ ~ 80℃ |
| Surface Finish: | Outside EP, inside Ra<0.8μm |
| Weld end dimension standard: | EN10357, DIN11866, DIN11850, ISO1127, ISO2037 |
| Application industries: | Food, dairy, wine, water, pharmacy, comestics, chemical fluids, etc. |

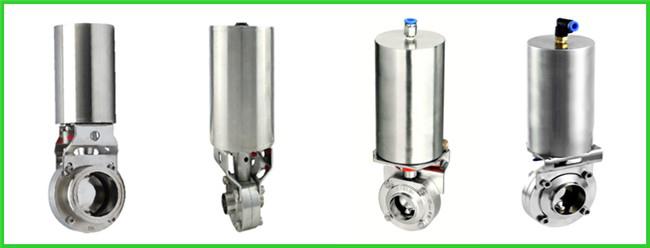

Product Show:
