Casted Steel Sanitary Diaphragm Valve , Diaphragm Pneumatic Valve Non Retention
Price:
Negotiable
MOQ:
Sample order acceptable
Delivery Time:
1 - 2 weeks upon order quantity
Brand:
WLM
Product Description
316L Stainless Steel Sanitary Pneumatic Actuator Tri Clamp / Welded Tank Bottom Diaphragm Valves
Quick Details:
- Also known as medium discharge valve installed at the bottom of a sanitary tank
- Diaphragm structure design protects the valve from fluid contamination or corrosion
- Pneumatic driving mode to ensure efficient operation and more accurate flow control
- Pnuematic actuator can be made of either stainless steel or plastic
Features & Advantages:
- Compact configuration and excellent sealing effects
- Ideal 35 degree angle design to ensure stable flow and self cleaning
- Daily maintenance and repair friendly
- 0.2 - 0.5μm surface process
- Higher hygienic grade, non retention
- Strong self cleaning and automatic draining ability
- Best quality 316L and PTFE material to achieve strong corrosion resistant ability
Specifications:
| Operation Mode: | Manual or Pneumatic with intellegent controller and position sensor for remote control |
| Size: | Ф25-Ф63, DN15-DN80, 1"- 3" |
| Body Material: | Casted steel 304 or 316L |
| Diaphragm Material: | ①EPDM ②EPDM+PTFE(Integrated) ③EPDM +PTFE(Separated) |
| Connection: | Welding, Clamp, Male, Flange |
| Working Pressure: | Max. 10KG ( EPDM or FPM Diaphragm ) Max. 6KG (PTFE Diaghragm) |
| Working Temp. : | 90℃~150℃ (according to diaphragm type) |
| Applications: | 3A, ISO, DIN piping system |

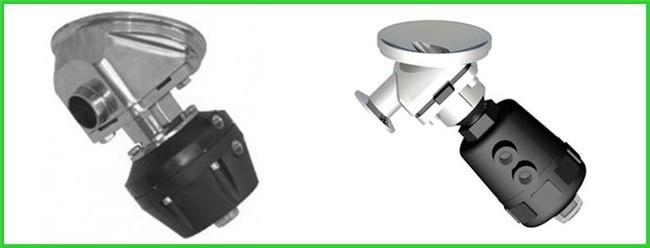

Valve Photos:
