Fast Assembly Sanitary Diaphragm Valve , Straight Through SS Diaphragm Type Valve
Price:
Negotiable
MOQ:
Sample order acceptable
Delivery Time:
1 - 2 weeks upon order quantity
Brand:
WLM
Product Description
Pharmaceutical Grade 1.4435 / 316L Sanitary Stainless Steel Pneumatic Actuator Tri Clamp Diaphragm Valves
Quick Details:
- Driven by strong and long lifetime stainless steel pneumatic actuator
- Operation mode can be spring return or double acting in NO or NC
- Optional actuator control units availabe: electronic positioner, limit switch, solenoid valve
- Pneumatic driving mode to ensure efficient operation and more accurate flow control
- Diaphragm structure protects valve from corrosion by separating medium and valve chamber
- Connection ends can be tri clamp or butt weld
Advantages:
- Adoption of highly hygienic stainless steel and sealing material
- Strong self cleaning ability
- Dead leg and retention free
- Daily maintenance and repair friendly
- 0.2 - 0.5μm accurate surface process
- Suitable for high temperature sterilization
Specifications:
| Operation Mode: | Pneumatic (common or with intelligent automation control unit |
| Structure: | Straight, Thorough flow way |
| Size: | DN20-DN100 |
| Body Material: | Casted stainless steel 316L |
| Diaphragm Material: | EPDM or EPDM+PTFE |
| Connection: | Welding, Clamp |
| Working Pressure: | 4 ~ 10 bar according to size and diaphragm material |
| Air Supply Pressure: | 5 ~ 8 bar |
| Surface Treatment: | Ra=0.4 ~ 0.6μm |

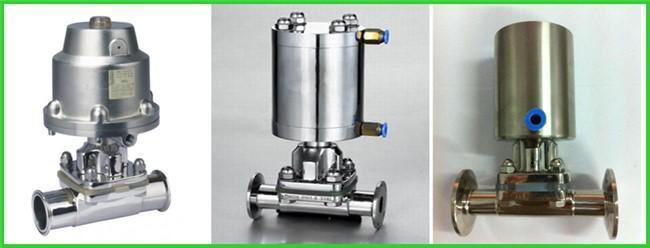

Valve Photos:
