Butt Welded Sanitary Diaphragm Ball Valve PTFE Seal Material , Minimized Dead Leg
Price:
Negotiable
MOQ:
Sample order acceptable
Delivery Time:
1 - 2 weeks upon order quantity
Brand:
WLM
Product Description
ASME BPE 316L Stainless Steel Sanitary Aseptic Butt Welded Diaphragm Valves For Pharmaceutical Application
Quick Details:
- Strong manual turning knob, material optional between plastic or steel
- Manual driving mode, cost saving and easy to operate
- Finely processed surface to meet hygienic requirements of GMP
- Intelligent diaphragm structure design, to eliminate dead leg, fluid retention or leakage
- Butt weld connection end offers firm and strong connection with pipes
Benifites of Butt Weld Diaphragm Valves:
- Complete self-draining function
- Minimized dead leg or area
- Valve chamber and fluid channel are separated to prevent medium contamination and retention
- Compact structure design to save much more installation space
- Minimized welding points
- Very easy and simple on site installation
Installation Angle:
The sanitary manual butt welded diaphragm valve should be installed on the horizontal pipeline at the angle of 15 to 30 degrees, to make the medium through the diaphragm valve automatically drained without any retention.
Specifications:
| Drive Model: | Manual type turning wheel, plastic or steel |
| Size: | DN25 ~ 50 or other size on request |
| Steel Material: | 316L, hygienic design |
| Diaphragm Material: | EPDM or EPDM + PTFE |
| Max. Working Pressure: | 6 ~ 10 bar |
| Working Temperature: | 90 ºC ~ 150ºC |
| Connection End | Butt Weld |
| Surface Treatment: | Rg 0.4 ~ 0.6µm or electrolysis process |
| Weld End Dimension: | according to EN 10357, DIN 11866, DIN 11850, ISO 1127, ISO 2037 |
| Application: | Pharmaceutical, WFI, Fine Chemical industries |

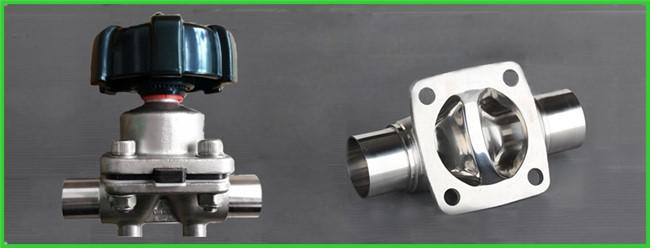

Product Show:
