Professional Hygienic Diaphragm Actuator Valve Mushroom Valves Spring Return / Double Acting

Sanitary Hygienic Stainless Steel Tri Clamped Diaphragm Valves Mushroom Shape Plastic Pneumatic Actuator

Features:

• Driven by mushroom shaped plastic pneumatic actuator
• Can be operated by spring return or double acting in NO or NC mode
• Optional actuator control units availabe: electronic positioner, limit switch, solenoid valve
• Pneumatic actuation makes the valve work in high efficiency
• Diaphragm structure design separates valve chamber from fluid channel without fluid contamination
• Tri clamp connection ends offers fast installation and strong connection with pipelines

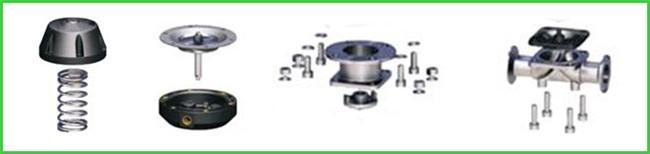

Main Parts:

1. Plastic pneumatic actuator: can be spring return mode or double acting mode

2. The upper valve cover: made of hygienic grade 316L stainless steel

3. Diaphragm: made of EPDM or PTFE, can withstand high temperature

4. The lower valve cover: separated from the upper part by diaphragm

5. Clamp connection end: dimension according to ISO, DIN, SMS, BS standards

6. Mounting kits: standard bolts and nuts to fix the valve parts firmly

Specifications:
