Pharmaceutical Sanitary Diaphragm Valve , Plastic Case Pneumatic Diaphragm Valve
Price:
Negotiable
MOQ:
Sample order acceptable
Delivery Time:
1 - 2 weeks upon order quantity
Brand:
WLM
Product Description
Hygienic Grade 1.4435 / 316L Stainless Steel Sanitary Plastic Case Pneumatic Diaphragm Valves
Quick Details:
- Driven by strong and long lifetime plastic case pneumatic actuator
- Operation mode can be spring return or double acting in NO or NC
- Pneumatic driving mode to ensure efficient operation and more accurate flow control
- Diaphragm structure protects valve from corrosion by separating medium and valve chamber
- Connection ends can be tri clamp or butt weld
- Highly hygienic grade applicable for pharmaceutical, WFI, food and find chemical pipelines

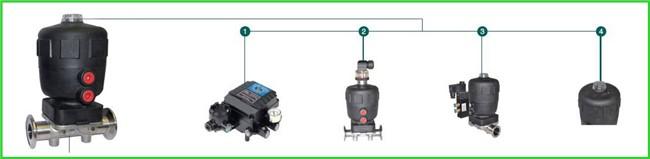

Optional actuator control units:
We have several kinds of automation control units for your choice, listed as below:
1. Electronic positioner,
2. Limit switch
3. Solenoid valve
4. Fast Feedback Switch

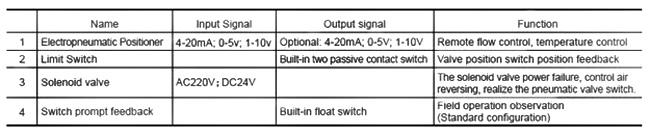

Technical Parameters of control units:
Specifications:
| Operation Mode: | Plastic Case Pneumatic Actuator |
| Structure: | Diaphragm design |
| Size: | DN20-DN100 |
| Body Material: | Casted stainless steel 316L |
| Diaphragm Material: | EPDM or EPDM+PTFE |
| Connection: | Welding, Clamp |
| Working Pressure: | 4 ~ 10 bar according to size and diaphragm material |
| Pneumatic Air Input Pressure | 0.4 - 0.6 Mpa |
| Surface Treatment: | Ra=0.4 ~ 0.6μm |

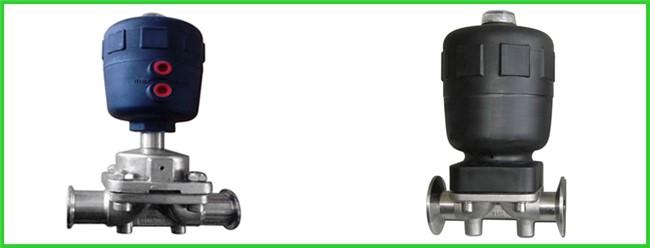

Valve Photos:
