1.4435 / 316L Stainless Steel Diaphragm Valve Hygienic Grade , U Shaped
Hygienic Grade 1.4435 / 316L Stainless Steel Sanitary U shape Tri Clamp / Welded Three Way Diaphragm Valves
Product Description:
This U shape sanitary three way diaphragm valve can be operated by either a manual wheel or pneumatic actuator. It is especially applicated in the hygienic and aseptic process of pharmaceutical industries.
The U shape hygienic three way diaphragm valve is very suitable for opening / closing and flow control in the pipeline system.
The diaghragm offers valve body sealing and valve seat sealing. The valve cavity is completely insulated from outside, so it can reach highly asptic grade.
Working Principle:
When the valve is closed, the sealing diaphragm moves downwards until it completely separate the valve seat from the valve cavity.
When operating the manual handle or pneumatic actuator, making the valve stem move upwards, the sealing diaphragm moves upwards accordingly, the valve is opened.
Design Advantages:
1. Very excellent flow ability
2. Much easier to be cleaned
3. CIP / SIP process friendly
4. Very suitable for sticky fluids
Specifications:
| Operation Mode: | Manual or Pneumatic Actuator |
| Structure: | U type flow, three way |
| Size: | 1/4" - 4" |
| Body Material: | Casted stainless steel 316L |
| Diaphragm Material: | EPDM or EPDM+PTFE |
| Connection: | Welding, Clamp |
| Max. Pressure: | 10 bar (145psi) |
| Max. Temperature: | -20℃ +150℃ (EPDM)-4℉+302℉(+140℃(SIP,30) 284℉) |
| Surface Treatment: | Inside: Ra< 0.5μm, Outside matt or mirro polished |
| Approval: | PED 97/23 EC,3A/54-02/1580,FDA177.2600 |

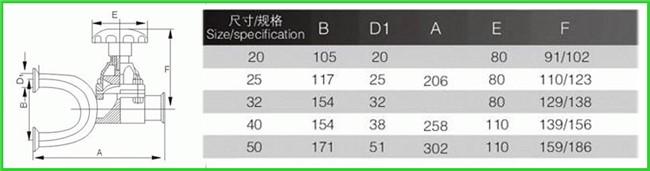

Valve Dimensions:

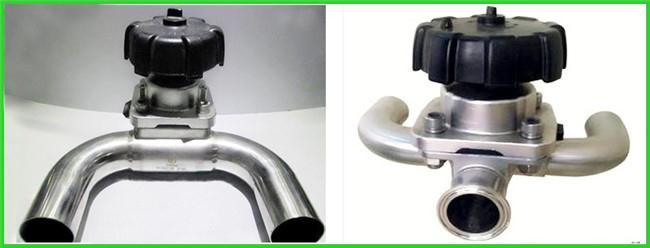

Valve Photos:
