Manual / Pneumatic Sanitary 3 Way Diaphragm Valve , T Type Tri Clamp Valve
Manual or Pneumatic Power Stainless Steel Sanitary Tri Clamp / Weld T Type Three Way Diaphragm Valves
Features and Advantages:
1. Application: used for flow division and flow direction change
2. Operation mode: by manual wheel or pneumatic actuator
3. Flow structure design: T type
4. Valve parts are firmed by bolts and nuts, for easy and fast assembly
5. Speical diaphragm structure design makes the valve an ideal solution for super hygienic flows, sticky fluids, gas, and corrosive medium
6. Connection ends can be clamp or weld for very convenient installation
7. EPDM and PTFE diaghragm meets hyginiec requirement of food and pharmacy industries
Raw Materials:
1. Medium contact valve body: highly aseptic grade 316L stainless steel
2. Medium non-contact part: 304 stainless steel
3. Diaphragm: EPDM or PTFE, withstand high termperature
4. Mounting bolts and nuts: 304 stainless steel, standard size
5. Operator: plastic or stainless steel manual wheel or pneumatic actuator
Valve Surface Treatment:
We offer different kinds of surface treatment techniques for your choice:
1. MP (mechanic polish) to make the surface bright
2. EP (eletric polish) to reach a perfect surface roughness value
3. Acid cleaning to strengthen anti-corrosion ability
4. Bright anealing to increase the mechanical properties
Specifications:
| Operation Mode: | Manual or Pneumatic Actuator |
| Structure: | T type flow, three way |
| Size: | 1/4" - 4" |
| Body Material: | Casted stainless steel 316L |
| Diaphragm Material: | EPDM or EPDM+PTFE |
| Connection: | Welding, Clamp |
| Max. Pressure: | 10 bar (145psi) |
| Max. Temperature: | -20℃ +150℃ (EPDM)-4℉+302℉(+140℃(SIP,30) 284℉) |
| Surface Treatment: | Inside: Ra< 0.5μm, Outside matt or mirro polished |
| Approval: | PED 97/23 EC,3A/54-02/1580,FDA177.2600 |

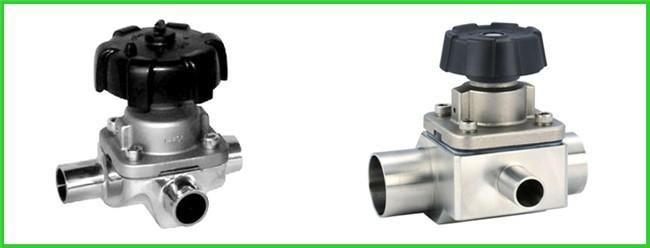

Valve Photos:
