Hygienic Grade Sanitary Check Valve With Male Thread Connection , High Sealing Function
Price:
Contact us for the best quote
MOQ:
1 pc
Delivery Time:
1 - 2 weeks according to order quantity
Brand:
WLM
Product Description
Hygienic Grade Stainless Steel Tri Clamped Sanitary Non-Return Check Valve With Male Thread Connection
Quick Details:
- The valve opens and closes automatically according to flow pressure
- Valve cover and valve seat are fixed simply by tri clamps
- Male thread connection end, excellent sealing performance for small size pipelines
- Standard thread spec suitable for very wide range of of pipe system
- Thread end specs: NPT, BSP, BSPT
- PTFE and EPDM seal material, highly resistant to high temperature and corrosion
- Very easy installation, detachable any time
Raw Materials:
We use best quality forged 304 or 316L stainless steel, main spec is as below:
- Tensil strength: σb (MPa)≥520
- Yiel strength: σ0.2 (MPa)≥205
- Elongation: δ5 (%)≥40
- Hardness: ≤187HB;≤90HRB;≤200HV
Specifications:
| Connection End: | Male thread |
| Size: | 1/2" ~ 4", DN15 ~ DN100, or custom on request |
| Flow Direction: | One way, non-return |
| Material: | SUS304, or SUS316L |
| Gasket: | Free choice among EPDM, PTF E, FPM or NBR |
| Working Pressure: | 1 - 1.6 Mpa |
| Working Temperature: |
-10°C to +120°C |
| Surface Process: | Matte or mirror Polishing 180#/240/320/400 |
| Connection Standard: | 3A, DIN, ISO, SMS, RJT, IDF |
Our Quality Control:
- PMI test to verify material grade
- imension control during fabricating and finished
- All valves should 100% pass press test
- Firm and strong packing for air and sea shipment
- Third party inspection available

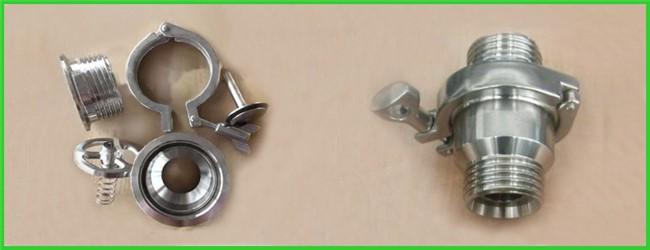

Hygienic Non-return Check Valve Photo:
