Food Grade Sanitary Butt Weld Check Valve Scientific Connection Design For Industrial
Price:
Contact us for the best quote
MOQ:
sample order acceptable
Delivery Time:
1 - 2 weeks according to order quantity
Brand:
WLM
Product Description
304 / 316L Stainless Steel Union Screw Firmed Non-Return Sanitary Check Valve Butt Weld Connection End
Features and Advantages:
- Valve cover and seat is fixed by union connection method
- Fast and easy assembly, valve parts can be replaced immediately
- Very sientific connection design, high sealing function, no leakage problem
- Automatically opened / closed by pipeline flow pressure
- Smooth and finely finished surface with acid and corrosion resistance
- Applied to pipelines in pharmaceutical, dairy, wine, beer, beverage, water industries
Highlights of Weld Connection End:
- Firmly welded to pipeline to eliminate leakage problem
- Safe and reliable, while saving cost
- Suitable for high temperature and high pressure pipe system
Our Customization Service:
We can produce customization products according to your drawings or samples as below:
- Customizing for sanitary valves, fittings with special sizes
- Customizing for a variety of hygienic valves, fittings with special performance
- Customizing for sanitary valves with special structure
- Csustomization of sanitary valves for use in special environments
- Designing and customizing to adapt to other product compatibility
- Faster deisgn speed and shorter R & D lead time
- Help to reduce your development costs
Specifications:
| Product Name: | Hygienic Non-return Check Valve |
| Material: | 304 or 316L stainless steel, forged or casting |
| Standard: | 3A, ASME BPE, EN 10357, DIN 11850, DIN 11866, ISO 1127, ISO 2037 |
| Size: | 1/2" - 4" or DN15-DN100 |
| Thickness: | 1.2mm - 2mm |
| Connection Way: | Weld |
| Seal Material: | Silicone, EPDM, Viton, NBR |
| Surface Finish: | Ra≤0.8 |
| Working Temperature: |
-10°C to +120°C |
| Opening Pressure: | 0.3 Bar (DN25), 0.2 Bar (DN32/40), 0.1Bar (DN-50/100) |
| Packing: | Bubble bag + carton + plywood case |

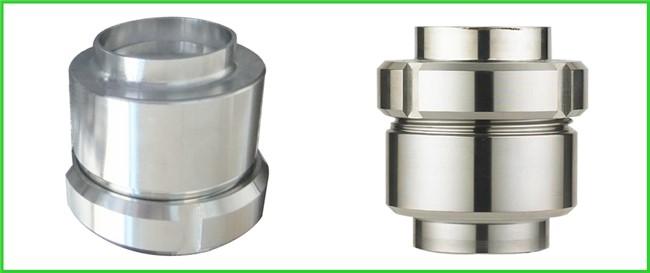

Check Valve Photos:
