Three Pieces Sanitary Flanged Check Valve / One Way Check Valve For Pure Medium

Hygienic Stainless Steel Three Pieces Sanitary One-way Non-Return Flanged Check Valve

Quick Details:

• The valve opens and closes automatically according to flow pressure
• Valve body consists of three detachable parts, fixed by flange connection
• Detachable parts brings much convenience and saves much time for assembly
• PTFE and EPDM seal material, highly resistant to high temperature and corrosion
• The valve is installed into the pipeline by fast loading flange
• Flange end dimension meets standards ISO, DIN, BS, SMS, 3A, ASME

Valve Selection Tips:

• ​Check vale is suitable for pure medium, instead of sticky medium or fluid with particles
• Low pressure one-way check valves fit for pipeline smaller than DN50
• Opening pressure demand is a critical factor when selecting right model

Working Principle:

The sanitary one-way non return check valve is opened and closed automatically by flow pressure itself. The flow pressure from one side of the check valve pushes it open, when the medium flows backwards from the upper side, the flow pressure and gravity of valve disc force the valve seat to close, so that medium flows are stopped.

​

Specifications:

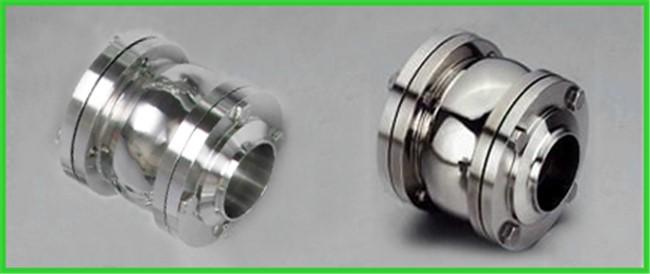

Product Photo:
