Manual Operated Hygienic Sample Valves With Tri Clamp Sample Inlet Connection
Price:
Negotiable
MOQ:
Sample quantity acceptable
Delivery Time:
1-2 weeks
Brand:
WLM
Product Description
Sterilization Available Manual Operated Sanitary Aseptic Sampling Valve With Tri Clamp Sample Inlet Connection
Quick Details:
- Three ends: Sample inlet, sample outlet, sterilization inlet sterilization
- Sample inlet connected to aseptic vessels and pipelines by tri clamp
- Strong stainless steel manual wheel or joystick to open/close valve
- Valve chamber is sterilized both before and after sampling
- The sterilization medium can be steam or low concentration acid
- Surpport CIP / SIP process
Specifications:
| Driven mode: | Manual wheel, joystick |
| Sample inlet port: | Tri clamp |
| Branch ports: | Hose |
| Sample Inlet Size: | 1/4", 3/8", 1/2", 3/4", 1" |
| Valve opening pressure: | 6 bar max |
| Valve closing pressure: | max. 12 bar (sealing head); 15 bar (stainless steel valve body) |
| Working temperature: | -20 ~ 120 degrees centigrade (EPDM) |
| Sterilization Temperature: | 150 degrees centigrade, dry steam |
Our Competitive Advantages:
- Rich manufacturing experience in the field of hygienic pipeline valves
- Compliant with international high precision standards
- Smart design and simple structure
- Longer working life

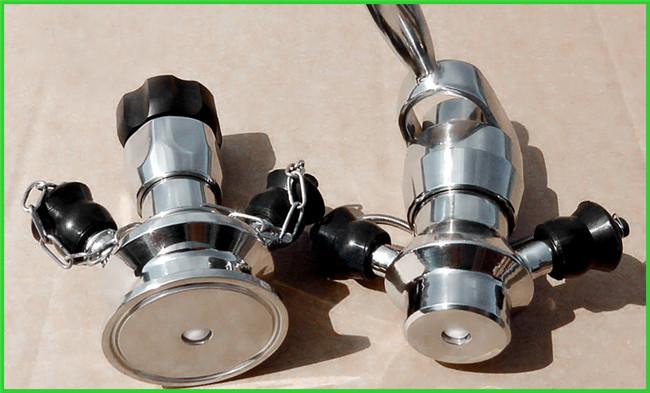

Valve Photo:
