Sanitary Butt Weld Aseptic Sampling Valve Manual And Pneumatic Hybrid Operation
Price:
Negotiable
MOQ:
Sample quantity acceptable
Delivery Time:
1-2 weeks
Brand:
WLM
Product Description
Manual & Pneumatic Hybrid Operation Sanitary Hygienic Aseptic Butt Weld Sample Valve For Sample Exraction
Quick Details:
- Powered by either pneumatic actuator or manual handle
- Three connection ends: Sample inlet, sample outlet, sterilization inlet
- Firmly welded to pipeline to eliminate leakage problem
- Valve chamber to be sterilized by steam or low concentration acid
- Sterilization for both before and after sampling to achieve highly hygienic grade
Weld End Dimension Standards:
- ISO 1127 Stainless steel tubes
- ISO 2037 Stainless steel tubes for food industry
- DIN 11850 Stainless steel tubes for the food and chemical industries
- DIN 11866 Pharmaceutical tubes, Metric
- EN 10357 Welded stainless steel tubes for the food and chemical industires
Specifications:
| Driven mode: | Free switch between pneumatic and manual operation |
| Sample inlet port: | Butt weld |
| Branch ports: | Butt weld |
| Sample Inlet Size: | 1/4", 3/8", 1/2", 3/4", 1" |
| Valve opening pressure: | 6 bar max |
| Valve closing pressure: | max. 12 bar (sealing head); 15 bar (stainless steel valve body) |
| Working temperature: | -20 ~ 120 degrees centigrade (EPDM) |
| Sterilization Temperature: | 150 degrees centigrade, dry steam |
Valve Selection:
Tell us your requirements to the following items, we will provide you with the most suitable model:
1. Dimensions and specifications
2. Body material and sealing material
3. Ancillary components
4. Connection end
5. Medium and for pipe or tank
6. Any other special requirements?

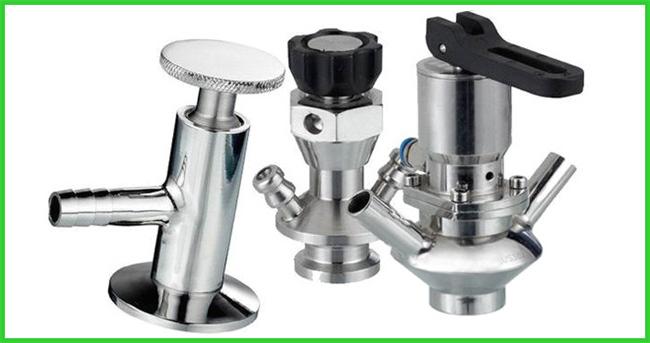

Valve Photo:
