Aseptic Sanitary Sample Valve , Tri Clamp Sample Valve For Brewery Industry
DIN / ISO / SMS / BS / 3A Pneumatic Actuator & Manually Powered Sanitary Aseptic Sample Valve Tri Clamp Connection
Product Description:
This sanitary aseptic sampling valve can be opened either by manual handle or with its pneumatic actuator. The valve stem and diaphragm seal unit retract when the sample valve is open, to let the material sample flow out. The PTFE diaphragm is optimal for high viscosity mediums. Sanitary pneumatic samples valves are often used for sample extraction in production of food, beverages, pharmaceutical and many other hygienic industries.
Parts & Materials:
1. Manual handle: 304 / 316L stainless steel wheel
2. Pneumatic actuator: 304 or 316L stainless steel
2. Valve body: 316L for medium contact part and 304 for others
3. Valve disc and spring: 316L stainless steel
4. Gasket: EPDM, FPM, SILINCONE
Features:
1. It has both manual and pneumatic operate mode, much more convenient
2. All three connection ends are tri clamp, for fast installation and disassembly
3. Sterilization process available to keep valve chamber in extremely aseptic condition
4. Strong ability resistant against medium contamination or corrosion
5. Clamp ends meets DIN32676 SMS3017, DIN11864, DIN11853, BS4825, DIN32676, ISO2852
Specifications:
| Driven mode: | Free switch between pneumatic or manual operation |
| Size: | 1/4" ~ 1", DN6 ~ DN25 |
| Connection ends: | Tri clamp |
| Valve opening pressure: | 8 bar |
| Working temperature: | -10℃ to +40℃ |
| Outside surface: | Ra<1.6μm |
| Inside surface: | Ra<0.8μm |

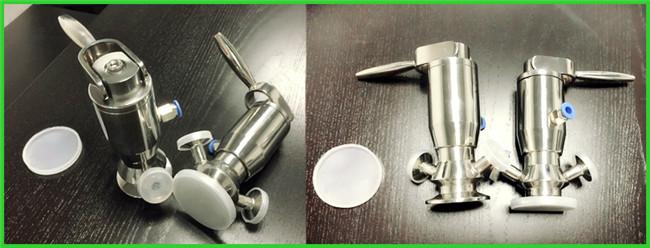

Sample Valve Photo:
