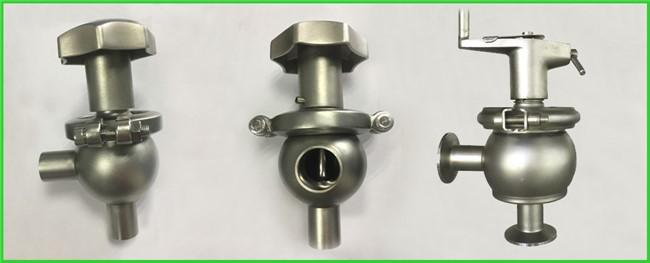

Hygienic Sanitary Manual Flow Regulating Valve Butt Weld / Tri Clamp Connection Ends

Hygienic Sanitary Manual Flow Regulating Valve Butt Weld / Tri Clamp Connection Ends

Products Description:

The sanitary regulating valve is a type of control valve to adjust flow rate and pressure of downstream mediums. Found in most sanitary production lines, these pressure regulators allow greatly improve safety and quality control.

Specification

Size: DN25-DN200 & 1''-8''

Flow Direction: One way

Working Pressure: 0-10 bar

Air Pressure: 0-6 bar

Working Temperature: -10~+140℃ (PTFE/EPDM)

Connection: Weld, clamp, thread, union

Standards: ISO, IDF, DIN, 3A, SMS

Application:
The series of valve is major let the medium reach the purpose of reversing or end stop, because the goods tightness and cleanability, they are extensively use to different sanitary industry areas.

a. Working Principle

Manually set the valve opening degree to make a pressure drop to the medium passing through the valve, thus regulating the medium pressure, flow and temperature of pipeline system.

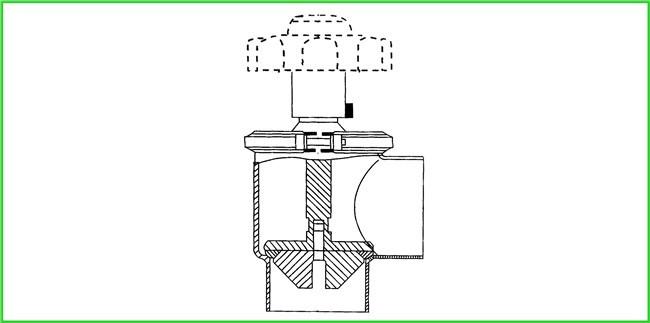

b. Configuration

c. Features

* Manual control if variables, and the valve is driven by the power of medium

* Compared with the ball valve, butterfly valve and other valves, it produces a more significant pressure drop.

* Among the valves of same caliber, our regulating valve has a higher KV valve

* Conical valve plug inside.

* Strong chrome plated turning knob

* Best EPDM sealing material, high temperature resistant, anti-corrossion

* Multiple choices of size, standards, models available

Standard Design
Various standards of valves can be provided to clients: DIN, 3A, SMS, ISO/IDF, BS/RJT, ASME/BPE etc
The series of valve have two type valve, that is the cut-off type and reversing type, the cut-off type can made of two or three pipeline connector, the reversing valve can made of three to five pipeline connector, their variety full satisfied the needed of market.
