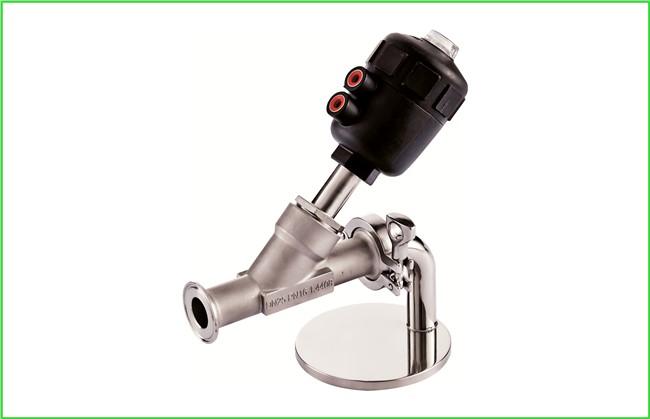

Hygienic Plastic Angle Seat Valve with Pneumatic Actuator , Thread / Flange Connection
Hygienic Sanitary Plastic Pneumatic Actuator Angle Seat Valve Tri Clamp / Thread / Flange Connection
Product Description:
The sanitary angle seat valve is designed to regulate flow rate with its single flow rate pneumatic actuator with NO and NC configurations. it is generally used for the frequent start, close, distribution and control of liquid or gas flow, to maintain the pressure, flow, temperature and liquid level at a given valve. These seat valves are suitable for mediums such as water, oil, gas, steam and so on.
Highlights:
1. NO/NC auto indicator
2. Fast reponse, accurate action
3. Long lifetime, maintenance free
4. Smart configuration supports a 30% large flow
5. KV valve is higher than that of a common shutoff valve
Working Principle

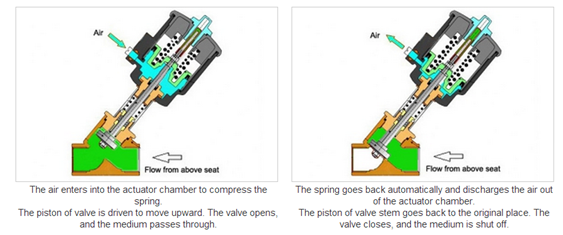

1. Flow from above seat

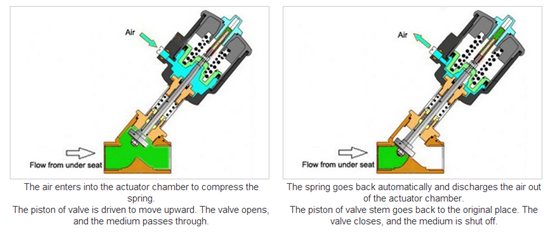

2. Flow from below seat
Specification Details
| Size | DN15-DN100 |
| Working Temperature | -20℃~+180℃ |
| Ambient Temperature | -10℃~60℃ |
| Norminal Pressure | 16 bar |
| Control Pressure | 3-8 bar |
| Actuator | PA or PPS, free choice |

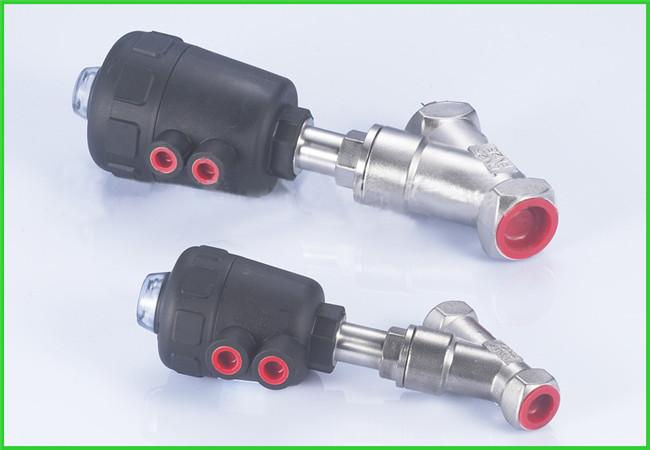

Types
1. Actuator, plastic, or stainless steel
2. Action, single, or double
3. Sealing Material, PTEE or NBR, FPM, EPDM
4. Connection standard: 3A, ISO, SMS, DIN
Angle Seat Valve-2 Way 2 Position Pneumatic Angle Seat Valve
|
Orifice size (mm) |
Port size (G or NPT) |
Kv (m3/h) | Operating pressure (bar) |
Min. pilot pressure (bar) |
Flow direction |
| 13 | 1/2” | 4.2 | 0~16 | 2.7~3.0 | Above seat |
| 20 | 3/4” | 8 | 2.7~3.4 | ||
| 25 | 1” | 19 | 2.7~5.0 | ||
| 32 | 1 1/4 | 27.5 | 3.6~5.0 | ||
| 40 | 1 1/2 | 42 | 3.6~6.2 | ||
| 50 | 2” | 52 | 3.6~7.4 | ||
| 65 | 2 1/2 | 77 | 3.6~10 | ||
| 80 | 3” | 110 | 3.6~10 | ||
| For steam more than 180°C, max. Operating pressure is 10 bar | |||||
