Mirror Polishing Sanitary Pipe Fittings Cross Pipe Fittings For Pharmaceutical Engineering
DIN/SMS/3A/BS/SMS Sanitary Weld Tri Clamp Thread Cross Pipe Fittings
Descriptions:
1. The sanitary cross is made of seamless stainless steel tube
2. These pipe fittings are used to connect main pipelines with branches
3. Compliant with high precision standards
4. Meets most hygienic requirements of the pharmaceutical engieering industry
5. Shape: equal cross (same OD. of all four ends), reducing cross (main pipe OD > branch OD)
6. Connection ends: Clamp, Union, Weld, Flange, Thread, etc
7. Pipe line applications: 3A, DIN, ASME BPE
Specifications
| Size: |
3A weld & flange pipe lines: 1’’-6’’ DIN weld pipe line: DN10-DN150 for both long and short type DIN clamp pipe line: DN25-DN150 ASME BPE clamp & weld pipe line: 1/4’’-6’’ ISO/IDF weld & clamp & Thread pipe line: 1’’-4’’ for both long and short type SMS pipe line: 1’’-4’’ P.S.: other size, standard, and connection type can be customized |
| Wall Thickness: | 1.5mm-2.0mm |
| Material: | SUS304, SUS316, SUS316L |
| Surface Treatments: | Mirror polishing, matt finishing, sand blasting, or Acid washing |
| Polishing: | Inner surface: Ra<0.4-0.8μm, outside surface: Ra<0.8μm |
| Application: | Dairy, food, beverage, wine, beer, pharmaceutical engineering, water, comestics |

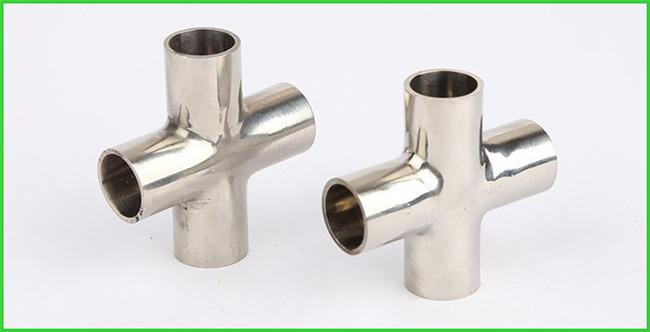

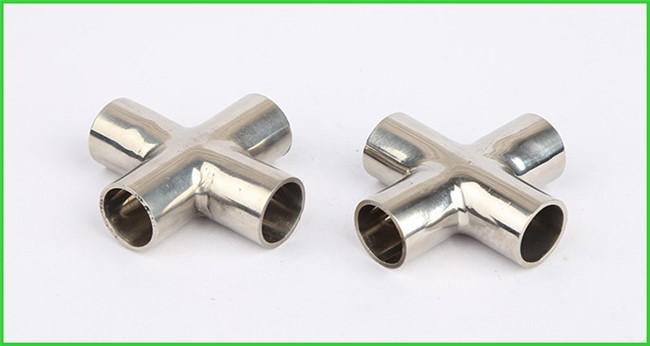

Galleries:
Belows are the most popular models of sanitary stainless steel cross pipe fitting. We can also accommodate special requests.
