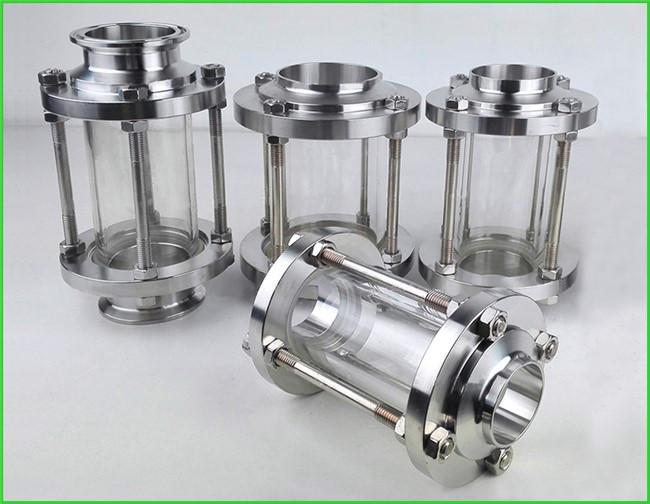

Straight / Inline Tube Tri Clamp Sight Glass For Sanitary Stainless Steel Fittings
304 / 316L Stainless Steel Sanitary Hygienic Straight / Inline Tube / Pipe Sight Glass Tri Clamp Connection
Product Description
In most of the hygienic industries like pharmacy, food, beverage, wine, water, the piping system of production lines needs this kind of tri clamp sight glass to monitor the medium flow status 24 hours.
Advantages
This straight inline sight glass is simply connected with pipe lines by clamp, and installed inside the production line. The tri clamp connection offers below benefits:
a. Very easy and fast installation
b. Detachable anytime if necessary
c. Very convenient for daily repair and maintenance
Dimension Standard Of Clamp Connection End:
· ISO2852 Stainless steel clamp pipe couplings for food industry
· BS4825 PART 3 Specification for clamp type couplings
· DIN11853-3 Hygienic clamp connections, short type for food industry
· DIN11864-3 Aseptic tri-clamp connection, standard type
· DIN32676 Clamp fastening couplings for food, chemical and pharmaceutical application
· SMS 3017 Clamp connections
· 3A
· ASME BPE: ASME Bio-technology Process Equipment
Specification:
| a. Size | b. DN10-DN150 & 1/2""-6" |
| c. Type | d. Straight Tube Sight Glass |
| e. Working Pressure | f. 1.0 MPa Max. |
| g. Medium Temperature | h. 0~200℃ |
| i. Optional Accessories | j. LED light available |
| k. Standard | l. ISO, DIN, IDF, 3A, SMS etc. |
| m. Material | n. SUS304, SUS316L etc. |
| o. Certificate | p. CE, ISO9001/2008, 3A |
| q. Applications | r. Dairy, food, beer, beverage, pharmacy, cosmetic, etc. |
Photo Gallery:
