High Performance Sanitary Sight Glass , Ball Type Tube / Tank Sight Glass
304 / 316L Stainless Steel Sanitary Hygienic Ball Type Tube / Tank Sight Glass
Product Description
| Product name: | stainless steel Ball type cross sight glass |
| Material: | SS304,SS316L |
| Glass Material: | Tempered glass/ Toughened high-borosilicate glass |
| Seal Material: | EPDM,Silicone,PTFE |
| Connection: | Clamped,welded,threaded end |
| Size: | DN25-DN150, 1"-6" or as required |
| Standards: | DIN,3A,SMS,ISO,IDF |
| Max pressure: | 10Bar |
| Working temp: | -10°C to +150°C |
| Surface finishing: | Internal surface:Ra ≤0.8μm External surface:Ra ≤1.6μm |
| Packaging: | Standard exportation package or packed on the basis of customers' requirements |
| Applications: | Pharmacy, beer, food, dairy, brewing, beverage, water treatment and chemical industry,etc |
Raw Materials:
Stainless Steel: 304 or 316L, best quality, hygienic grade, strong and safe
Glass: Borosilicate glass, excellent anti-corrosion and explosion-proof performance
Gasket: EPDM, PTFE optional to ensure highly sealing function
Quick Details:
Can be straight way, or four way
Installed either in pipeline or to tanks
Connection ends: Tri clamp, butt weld, flange, male thread, union
Applications: pipe lines of hygienic mediums like beer, wine, drinks, milk, water, cosmetics etc.
Characteristics of Glass
Material: toughened borosilicate glass and fused silica glass
Withstand Temperature: toughened borosilicate glass≤180℃, fused silica glass: 1000℃
Withstand Pressure: toughened borosilicate glass≤3.0MPa, fused silica glass≤10.0MPa, toughened borosilicate glass tube: ＜1.0MPa, fused silica glass tube: ＜1.6MPa
Specification:
| a. Size | b. DN10-DN150 & 1/2""-6" |
| c. Type | d. Flange Type Tank Vessel Sight Glass |
| e. Working Pressure | f. 1.0 MPa Max. |
| g. Medium Temperature | h. 0~200℃ |
| i. Optional Accessories | j. LED light available |
| k. Standard | l. ISO, DIN, IDF, 3A, SMS etc. |
| m. Material | n. SUS304, SUS316L etc. |
| o. Certificate | p. CE, ISO9001/2008, 3A |
| q. Applications | r. Dairy, food, beer, beverage, pharmacy, cosmetic, etc. |

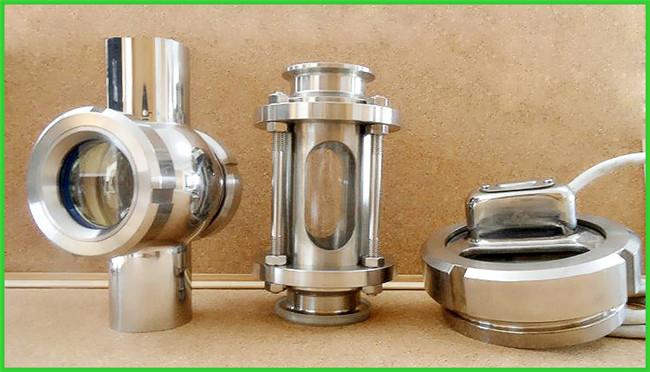

Photo Gallery:
