Sanitary Tank Vessel Union Sight Glass With Light , Tempered Glass Material
Price:
Contact us for the best quote
MOQ:
1 pc
Delivery Time:
7 working days
Brand:
WLM
Product Description
304 / 316L Stainless Steel Sanitary Hygienic Union Type Tank Vessel Sight Glass
Product Description
The parts of this sanitary sight glass are assembled by union connection method, and is connected to a hygienic tank or vessel by butt weld, tri clamp or thread connection ways. It is widely used in hygienic industries to monitor medium status inside the sanitary tanks or vessels.
| Product name: | Sanitary union sight glass with light |
| Material: | SS304,SS316L |
| Glass Material: | Tempered glass/ Toughened high-borosilicate glass |
| Seal Material: | EPDM,Silicone,PTFE |
| Connection: | Clamped,welded,threaded end |
| Size: | DN25-DN150, 1"-6" or as required |
| Standards: | DIN,3A,SMS,ISO,IDF |
| Power: | AC110V-220V,DC24V,Battery 220V |
| Max pressure: | 10Bar |
| Working temp: | -10°C to +150°C |
| Surface finishing: | Internal surface:Ra ≤0.8μm External surface:Ra ≤1.6μm |
| Packaging: | Standard exportation package or packed on the basis of customers' requirements |
| Applications: |
Pharmacy, beer, food, dairy, brewing, beverage, water treatment and chemical industry,etc |
Glass Material Type
Type A: Anti-corrosion type
Type B: Explosion-proof type
- Highlights of Union Connection End:
- 1. Very sientific connection design with high sealing function
- 2. High mechanical property to withstand strong force
- 3. Fast connection and disassembly, saving time
- 4. Exteremely convenient for daily repair and maintainance
- Union Connection End Dimension Standards:
- 1. ISO 2853: ISS / IDF Hygienic stainless steel couplings for food applications
- 2. DIN 11851: Unions screwed pipe fittings for food chemical and pharmaceutical industry
- 3. DIN 11853-1: Hygienic pipe screw connections, short type
- 4. DIN 11864-1: Aseptic screwed pipe connection for welding type union
- 5. BS 4825 PART 4: IDF / ISS Hygienic stainless steel thread couplings for food applications
Specification:
| a. Size | b. DN10-DN150 & 1/2""-6" |
| c. Type | d. Union Type Tank Vessel Sight Glass |
| e. Working Pressure | f. 1.0 MPa Max. |
| g. Medium Temperature | h. 0~200℃ |
| i. Optional Accessories | j. LED light available |
| k. Standard | l. ISO, DIN, IDF, 3A, SMS etc. |
| m. Material | n. SUS304, SUS316L etc. |
| o. Certificate | p. CE, ISO9001/2008, 3A |
| q. Applications | r. Dairy, food, beer, beverage, pharmacy, cosmetic, etc. |

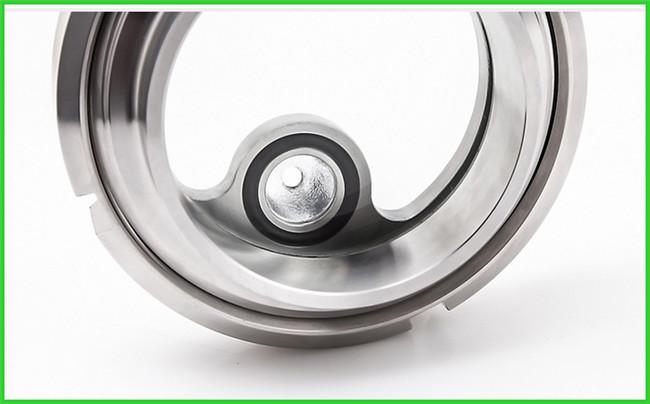

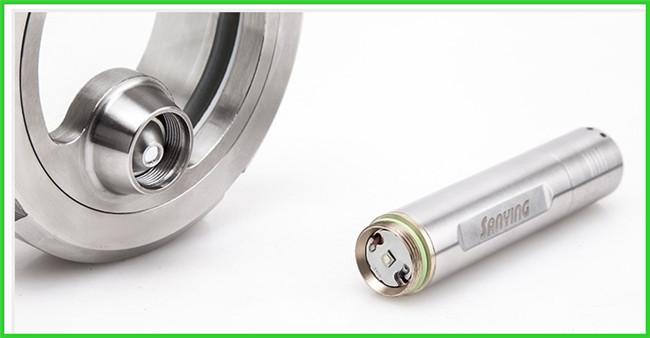

Photo Gallery:
