Highlight Sanitary Sight Glass C Union Type Tank Vessel Sight Glass For Processing Container
304 / 316L Stainless Steel Sanitary Hygienic Union Type Tank Vessel Sight Glass
Product Description
The parts of this sanitary sight glass are assembled by union connection method, and is connected to a hygienic tank or vessel by butt weld, tri clamp or thread connection ways. It is widely used in hygienic industries to monitor medium status inside the sanitary tanks or vessels.
Usually within 20 days upon receipt of down payment.
| Product Name: | UNION-TYPE SIGHT GLASS |
| The parts contact with liquid Material: | SS304 OR SS316L |
| Nut Material | AISI 304(1.4301) |
| Flat Gasket Material: | PTFE |
| Seal Material: | VITON,NBR,PTFE,SILICON Max temperature 180°C |
| Sight glass : | tempered glass. max temperature 120°C |
| Max working pressure: | 6 bar (or higher if customer has special requirement)Vacuum |
| Max Working Temperature: | 180 °C with proper gasket |
| Availably size: | DN40-DN200/ 1.5"-8" |
| Design: | With transparent circular glass;thread nozzle with the welded neck;welded sight glass with male; |
| Type option: | Basic type;Basic type with light;Basic type with both light and brush |
| Assemble way: | the glass can be installed on the equipment through clamps. |
| Advantages: | high light,white cold light source,waterproof,explosion-proof |
| Power option: | DC 24V wire power supply .OR rechargeable lithium battery(2200mAh/3.7) OR NO.5 dry battery(AA/1.5V) |
| Function: | It's widely used for viewing the biologic reactor,blender in laboratory,filter,processing container,pipeline and other closed container |
| Application scope: | Especially in food, wine, pharmacy, and beverage processing,such as the brewery,dairy |
| Packaging Details: | Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers. |
| Delivery details: | Usually within 20 days after receiving T/T down payment. |
Design Standard & Components

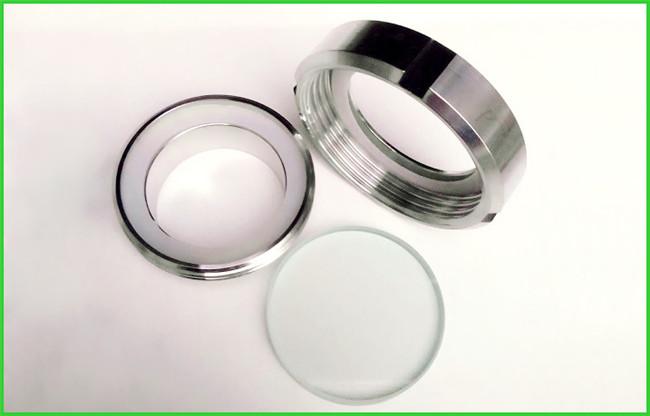

Stainless Steel Sanitary Hygienic Union Type Tank Vessel Sight Glass consists of adaptor, ferrule, liner and explosion-proof glass, and can be match with glass lamp and brush. The glass can be installed in Horizontal or vertical. The sight will be much clearer with the brush when the fog occurs. It can be observed in 360 degree at any time. This kind of sight glass is applicable to any kinds of stainless steel tank vessel.
Glass Material Type
Type A: Anti-corrosion type
Type B: Explosion-proof type
COMPONENTS
Technical information
Working Temperature: -20～＋200 (sealed, EPDM)
Material: 316L, 304 stainless steel
Seal component (standard): EPDM, PTFE (optionl)
Specification:
| a. Size | b. DN10-DN150 & 1/2""-6" |
| c. Type | d. Union Type Tank Vessel Sight Glass |
| e. Working Pressure | f. 1.0 MPa Max. |
| g. Medium Temperature | h. 0~200℃ |
| i. Optional Accessories | j. LED light available |
| k. Standard | l. ISO, DIN, IDF, 3A, SMS etc. |
| m. Material | n. SUS304, SUS316L etc. |
| o. Certificate | p. CE, ISO9001/2008, 3A |
| q. Applications | r. Dairy, food, beer, beverage, pharmacy, cosmetic, etc. |
Photo Gallery:
