durable Sanitary SS Tank Spray Cleaning Balls Male / Female Thread Fixed

Features:

Simple and fast installation by threading method

Smart and gook-looking appearance

Smooth and bright surface to meet hygienic grade

Strong anti-Acid and anti-corrosion ability

Product Description:

The spray cleaning ball automatically spray the cleaning liquid strongly to clean inside of the tank. It uses dual ball bearing specially for the sanitary and industrial application, like a hygienic tank, reactor, vessel etc. The fixed spray ball is screwed in the tank for cleaning task with lower requirement.

Technical Data:

Size:                                      DN10 - DN100

Injection hole size:                 3.5mm

Working pressure:                1-3Bar

Max. Working temperature:   95 degees centigrade

Max. Ambient temperature:   140 degree centigrade

Spray radius:                         Max. 3M

Inject cleaning radius:            2M

Connection ends:                  Male thread, female thread

Dimension standard:             DIN, 3A, SMS, ISO /IDF

Material:                                304/316L

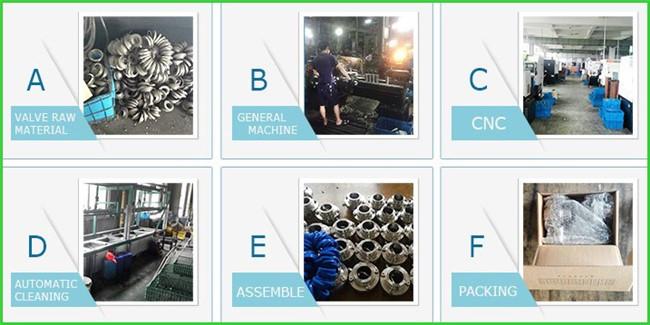

Production Process:

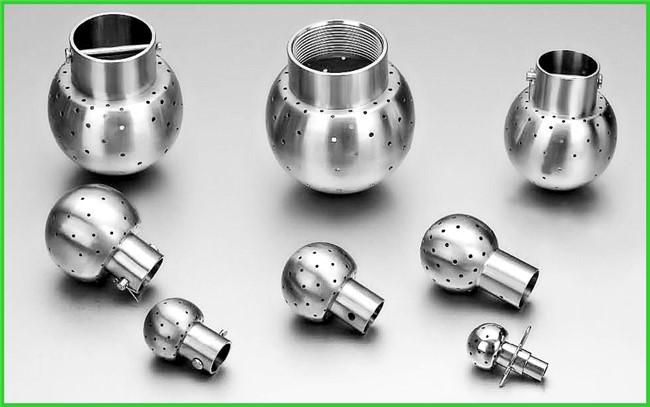

Photo Show:
