Tri Clamp Sanitary Spray Balls Rotary Tank Cleaning , 1.25M To 2M Cleaning Radius
Brief Description:
Sanitary rotary spray cleaning ball, also called as rotary spray tank washer or tank cleaner, is made of SS304 / SS316L stainless steel. It consists of a piping post and a ball with many holes. The ball can be in round or oval shape, also can rotate in 360 degrees. Cleaning liquid is injected out of the ball to the tank inside wall under pressure. Therefore the tank inside can be washed automatically. Hygienic rotary spray cleaning balls are part of CIP system and are widely used hygienic industries like bevery, brewery, chemical and bio-technology, and pharmacy, etc.
Features & Advantages:
- The ball head can rotate in different direction, to make full use of cleaning liquid
- Save much cleaning liquid with much higher efficiency than traditional fixed direction balls
- The rotating head adopts dual-ball bearings to achieve low resistance and long lifetime
- Hygienic grade to meet strict sanitary requirement of sanitary cleaning applications
- Suitalbe for differient type of tank, vessel and reactor
Specification:
| Dimension Standard | DIN, SMS, 3A, BS, ISO/IDF |
| Material Grade | AISI304(1.4301) / 316L(1.4404) |
| Sealing Material | EPDM or NBR |
| Size | 1"~2.5",19-63MM |
| Connection Ends | Tri clamp |
| Construction | 360 degrees rotary spray direction |
| Surface Treatment | Mirror Polished and Matt |
| Pressure | 0~10 bar |
| Cleaning Radius | 1.25m~2m |
| Fluxation | 12~38m3/h |
| Working Temperature | -20 to +135 degrees centigrade |

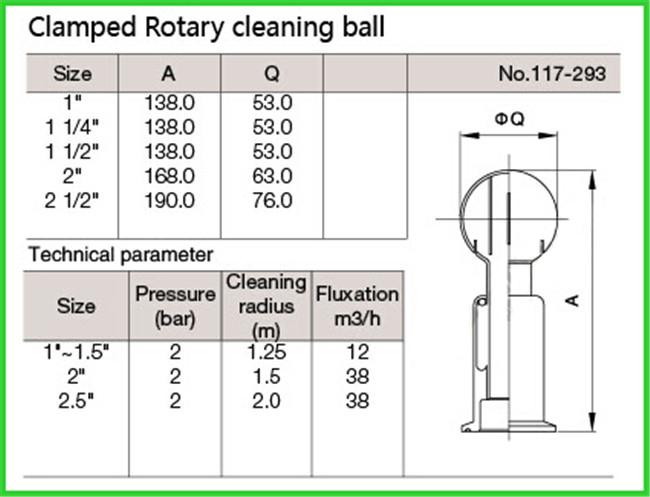

Dimension:

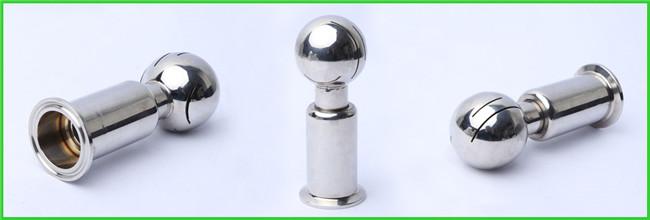

Photo Show:
