Female Thread Sanitary Rotating Cip Spray Ball With Round / Oval Shape Ball Head

Price Negotiable
Price: Negotiation
MOQ: Sample order accepted
Delivery Time: One week
Brand: WLM
Product Description

Sanitary Stainless Steel 360 degrees Rotary Spray Tank Cleaning Balls Female Thread Connection End



Characteristics:

1. Installed onto the tank inside with thread connection

2. Made of high quality 304 / 316L stainless steel and EPDM /NBR seal material

3. Ball head can be in round or oval shape

4. Ball head can rotate in 360 degrees direction

5. Compliance with hygienic industry standard



Advantages:



1. Dual ball bearing design with excellent rotation effects

2. Self-cleaning self-luvricating design

3. Cleaning without dead angle

4. Much low consumption of cleaning liquid than traditional fixed direction spray cleaning balls

5. Applicable to CIP cleaning of all kinds of sanitary hygienic tanks and vessels.



Specification:



Thread End Dimension Standard DIN, SMS, 3A, RJT, ISO/IDF
Material Grade AISI304(1.4301) / 316L(1.4404)
Size 1"~2.5",19-63MM
Connection Ends Female thread
Construction Rotary spray in all directions
Surface Treatment Mirror Polished
Pressure 1.5~3bar
Cleaning Radius 1.25mm~2mm

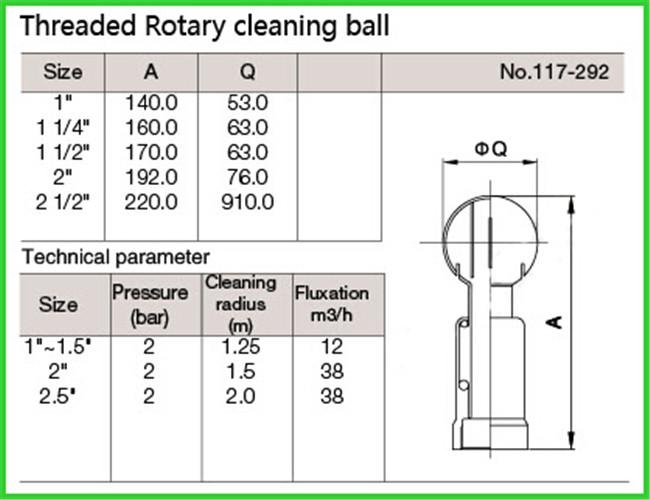

Dimension:

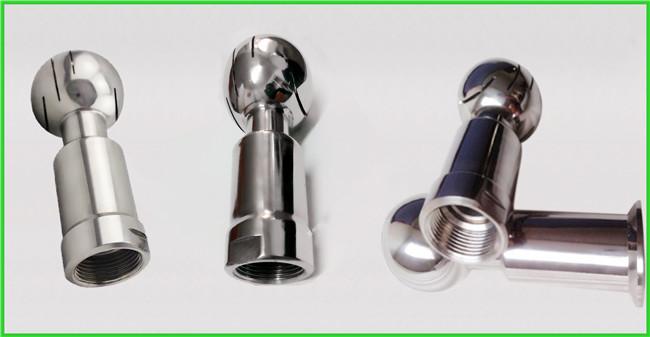

Photo Show:
