360 Degree Rotary Sanitary Spray Balls Stainless Steel Butt Weld Connection End
Price:
Negotiation
MOQ:
Sample order accepted
Delivery Time:
One week
Brand:
WLM
Product Description
Product Description:
- The sanitary cleaning balls are used to cleaning hygienic tanks, vessels and reactors
- Main parts are ball head and pipe post
- Butt welded onto the inside wall of the tanks
- The ball head can be round or oval
- The ball head can rotate in all directions to clean more area
- An important part of CIP system in hygienic industries
Working Principle:
The cleaning liquid makes the cleaning ball head rotate automatically. When the cleaning ball rotates, liquid is injected out through the holes on the ball head towards the tank inside wall. Therefore the high pressure of liquid can remove remainings from the tank inside wall.
Specification:
| Dimension Standard | DIN, SMS, 3A, RJT, ISO/IDF |
| Material Grade | AISI304(1.4301) / 316L(1.4404) |
| Size | 1"~2.5",19-63MM |
| Connection Ends | Bolt |
| Construction | 360 degrees spray direction |
| Surface Treatment | Mirror Polished and Matt |
| Pressure | 1.5~3bar |
| Cleaning Radius | 1.25mm~2mm |
| Fluxation | 12~38m3/h |
| Spray angle | 360-degree pattern |

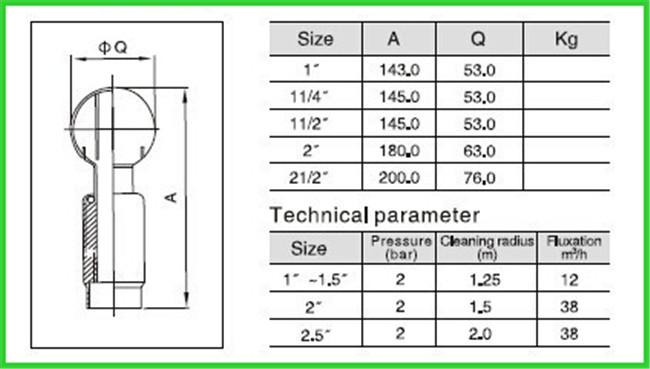

Dimension:
Applications:
CIP cleaning of all kinds of sanitary hygienic tanks and vessels.

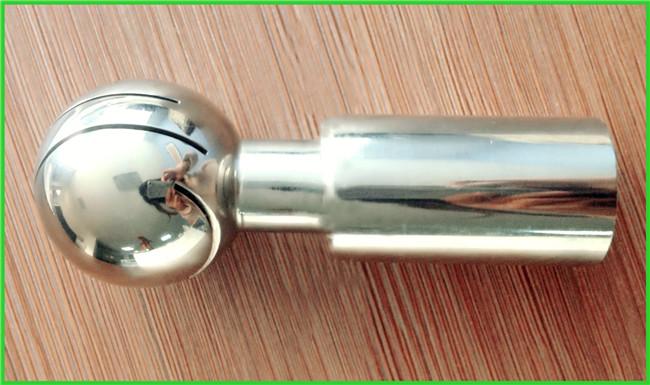

Photo Show:
