Bolt Pin Fixed Sanitary Spray Balls Rotary Spray Cleaning For Cleaning Hygienic Tank
Brief Description:
Sanitary rotary spray cleaning ball, also called as rotary spray tank washer or tank cleaner, is made of SS304 / SS316L stainless steel. It consists of a piping post and a ball with many holes. The ball can be in round or oval shape, also can rotate in 360 degrees. Cleaning liquid is injected out of the ball to the tank inside wall under pressure. Therefore the tank inside can be washed automatically. Hygienic rotary spray cleaning balls are part of CIP system and are widely used hygienic industries like bevery, brewery, chemical and bio-technology, and pharmacy, etc.
Spray Type:
Rotary spherical cleaning ball : ball head is in spherical shape
Rotary elliptical cleaning ball: ball head is in elliptical shape
Jet orifice: Can be flat slot shape or circle shape
Specification:
| Dimension Standard | DIN, SMS, 3A, RJT, ISO/IDF |
| Material Grade | AISI304(1.4301) / 316L(1.4404) |
| Size | 1"~2.5",19-63MM |
| Connection Ends | Bolt Pin |
| Construction | Rotary spray in all directions |
| Surface Treatment | Mirror Polished and Dull Polished |
| Pressure | 1.5~3bar |
| Cleaning Radius | 1.25mm~2mm |
| Fluxation | 12~38m3/h |

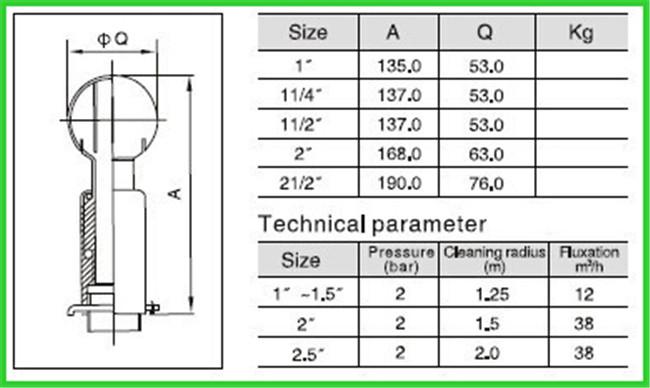

Dimension:
Applications:
CIP cleaning of all kinds of sanitary hygienic tanks and vessels.

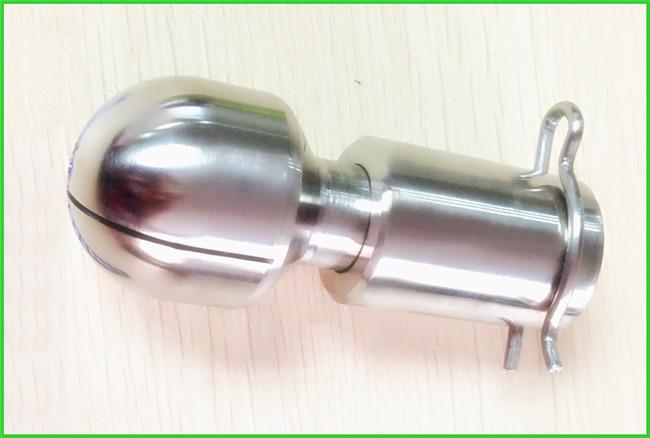

Photo Show:
