Stainless Steel Sanitary Tri Clamp Fittings Short Type For Food Industries

DIN 11853-3 Stainless Steel Sanitary Hygienic Tri Clamp Connection Couplings Set Short Type for Food Industries

Production Description:

This Tri clamp connection couplings set is designed and produced according to DIN 11853 part 3: Stainless steel clamp connection fittings for food and chemical industries

Hygienic clamp pipe connection, short type

DIN11853-3 tri clamp coupling fittings are used especially for stainless steel pipes in DIN11850.

Main Parts:

1. Hygienic nut clamp ferrule

2. Hygienic bundle clamp ferrule

3. Clamp: can be high pressure type, heavy duty type, single/double/tripple pin type

4. O-ring gasket

5. DIN11850 standard pipe

Technical Details:

1. Size can cover DN10 ~ DN200

2. Pipe dimensions according to DIN11850 standard

3. Working pressure should be 12.7~41mm 40bar; 42.4~70mm: 25bar; 76.1~104mm:16bar

4. Stainless steel material should be 1.4301, 1.4307, 1.4404, 1.4432

5. O-ring material can be EPDM, FKM, HNBR, or VMQ

6. Surface roughness must be Ra, internal < 0.8 μm, Ra, external < 1.6 μm

7. Hardness according to DIN53505 standard: 75+/-5 shore A; ISO48 O-Ring 70+/-8 IRHD

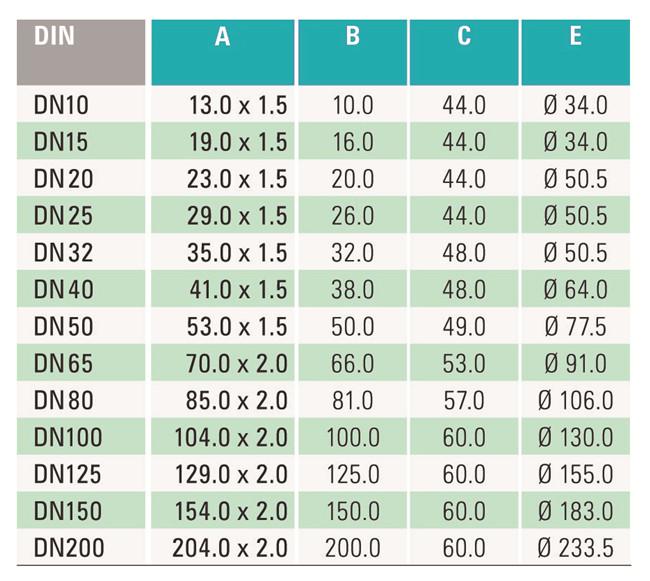

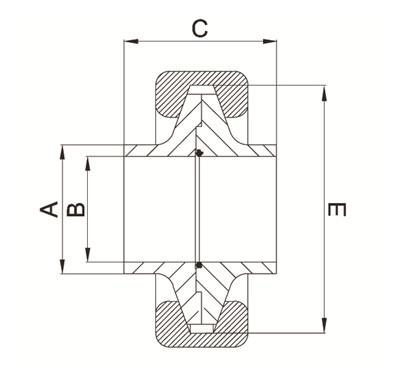

Dimensions:

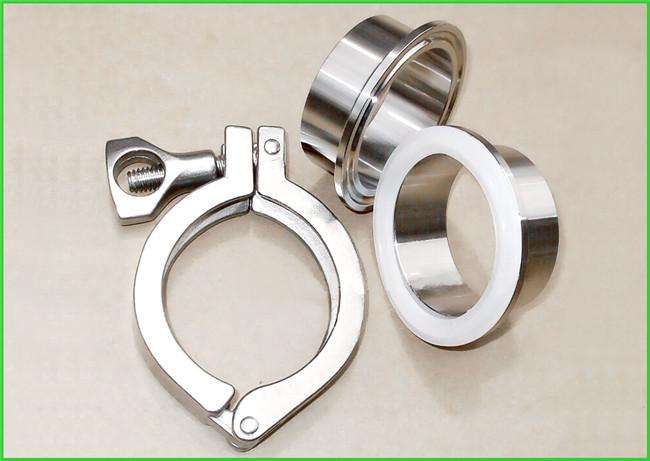

Photo Gallery:
