Hygienic High Pressure Pipe Clamps With Automatically Adapt Fastening Forces
Price:
Negotiable
MOQ:
1 set
Delivery Time:
1 - 2 weeks
Brand:
WLM
Product Description
DIN ISO 3A SMS Stand Size 1" ~ 12 Stainless Steel Sanitary Hygienic High Pressure Clamps
Characteristics and Advantages:
- The sealing gasket of the high pressure clamp can automatically adapt to fastening forces
- Favoured for pipelines with high pressure sealing requirements
- No need for welding, the clamp features three times faster assembly than flange connection methods
- Idea solution for weight and cost reduction
- Outstanding durability against acid, erosion and alkali
Technical Specifications:
- Size: 1" ~ 12", DN25 ~ DN200, other size can be tailored
- Tensile strength at groove: Upto 4.2 Mpa
- Raw Material: 304 austenitic stainless steel
- Standard: ISO, DIN, SMS, 3A, ASME BPE
- Application: stainless steel pipeline systems of food, beverage and pharmacy industries
Working Pressure and Temperature:
| SIZE (3A) | SIZE (DIN) | SIZE (ISO) |
21℃ psi |
121℃ psi |
| 1" - 1 1/2" | DN25 - 40 | 26.9 - 42.4 | 1500 | 1200 |
| 2" | DN50 | 48.3 | 1000 | 800 |
| 2 1/2" | 60.3 | 1000 | 800 | |
| 3" | DN65 | 76.1 | 1000 | 800 |
| DN80 | 88.9 | 1000 | 800 | |
| 4" | DN100 | 101.6 | 1000 | 800 |
| 114.3 | 600 | 400 | ||
| 5" | DN125 | 139.7 | 600 | 400 |
| 6" | 400 | 300 |
Dimension:
| Size | Tube Diameter |
Clamp Diameter ￠A |
| 1/2″ | ￠10 | 25.4 |
| 3/4″ | ￠19 | 34 |
| 1.5″ | ￠38 | 50.5 |
| 2″ | ￠51 | 64 |
| 2.5″ | ￠63 | 77.5 |
| 3″ | ￠76 | 91 |
| 3.5″ | ￠89 | 106 |
| 4″ | ￠102 | 119 |
| 4″ | ￠108 | 119 |
| 4.5″ | ￠114 | 130 |
| 5″ | ￠125 | 145 |
| 5.5″ | ￠133 | 155 |
| 6″ | ￠154 | 166.7 |
| 6.5″ | ￠159 | 183 |
| 7″ | ￠168 | 191 |
| 8″ | ￠202 | 217.7 |
| 8.5″ | ￠219 | 235 |
| 10″ | ￠254 | 268.5 |
| 11″ | ￠279 | 305 |
| 12″ | ￠305 | 319 |

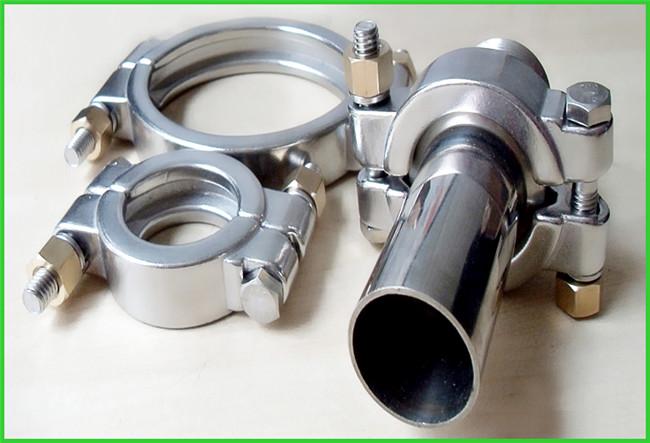

Product Photo:
