ISO2853 Hygienic Stainless Steel Union Couplings Hexagon Nut Type 1 Inch-4 Inch Size

1" ~ 4" Size ISO2853 Standard ISS IDF Hygienic Stainless Steel Union Couplings - Hexagon Nut Type

Product Introduction:

Working principle: to jion sanitary pipes or valves together by the way of screw coupling

Part material: 304 or 316L for medium contact part; 304 for other parts

Working pressure: 0 ~ 10 bar

Installation: Free direction, no special angle limit

Ways of connecting the pipe: by weld or thread

Surface treatment: internal surface Ra=0.4 ~ 0.8μm; outside surface: Ra=0.8 ~ 1.6μm

Sealing ring material: EPDM--black (-20～+135℃); Viton--black (-30～+230℃); Silicon--black or transparent or red (-50～+180℃), PTFE--white (-30～+230℃)

Main Parts:

• Thread male adaptor
• Liner: weld type, expand type
• Nut:  round, hexagon, blind
• Gasket: EPDM, Viton, NBR, MVQ

Specifications:

• Categories: Food grade union connections, pharmaceutical grade connections
• Size: DN25 - DN100, 1" -  4", Φ25 - Φ102
• Standards: ISO2853, ISS / IDF approved
• Stainless steel: 304, 316L
• Working pressure: 10 bar
• OEM: Non-standard production available according to drawings and samples

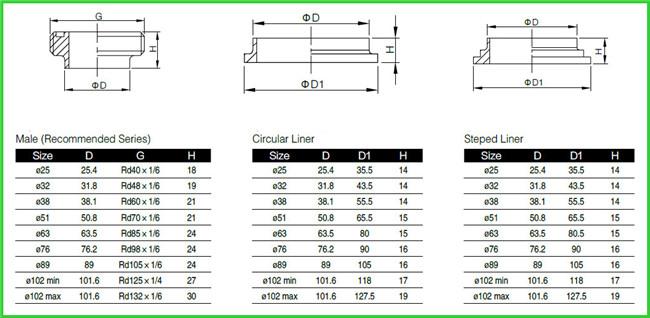

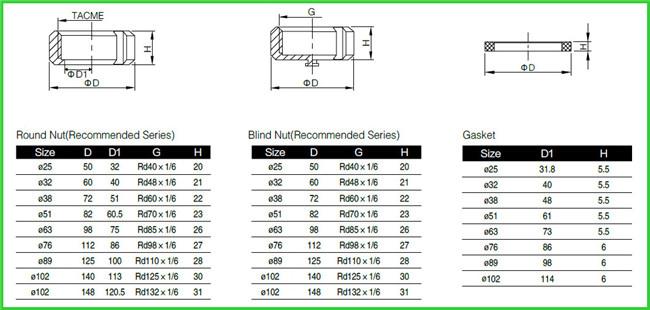

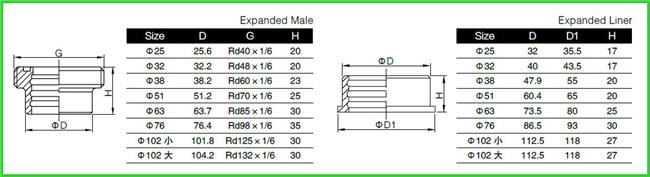

Dimensions:
