Stainless Steel Sanitary Butt Weld Fittings Eccentric Elbow Tee Pipe Fitting 1/2"-6"

1/2" ~ 6" 3A Standard Sanitary Hygienic Stainless Steel Butt Weld Concentric Eccentric Tee Fittings

Product Description:

3A Butt weld tee fittings designed specifically for use in the dairy applications according to 3A standard. Main material is 304 and 316L stainless steel to meet high hygienic requirement. They are mainly used to connect stainless steel pipes in three directions to change fluid flow direction. The branch port can be in short type, and also can be eccentric in size. We also have tees in U and Y shapes.

Features:

• Adoption of hygienic 304 and 316L stainless steel, to ensure strong durability, bright surface and long lifetime.
• Forged material under strict forging technique
• Can withstand higher pressure grade under same working condition

Applications:

• All companies in need of hygiene and high purity
• End-users in pharmaceutical, food, biotechnology, dairy
• OEMs
• Piping and Installations Companies
• Engineering Contractors
• Maintenance, Repair and Overhaul Companies
• "Hygienic Equipment" means all equipment,
• Components, assemblies and systems

Technical Details:

• Name: Sanitary Butt Weld Tees
• Material: 304 or 316L stainless steel
• Size: Long type 1/2" ~ 6"; Short type 1" ~ 4"
• Standards: 3A
• Main types: Concentric tee, Long / short concentric tee, short eccentric tee, 180 degree tee
• Working pressure: 10 bar
• Working temperature: -10 °C ~ +140 °C
• Surface treatment: Food grade Ra<0.8μm; pharmaceutical grade Ra<0.4μm

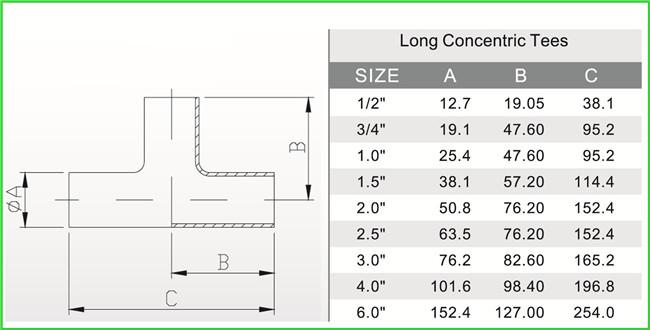

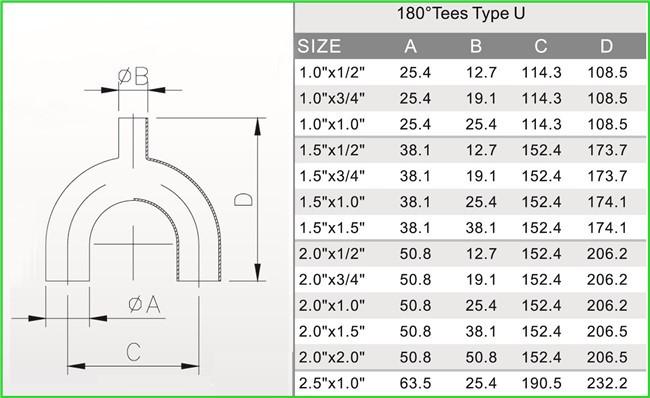

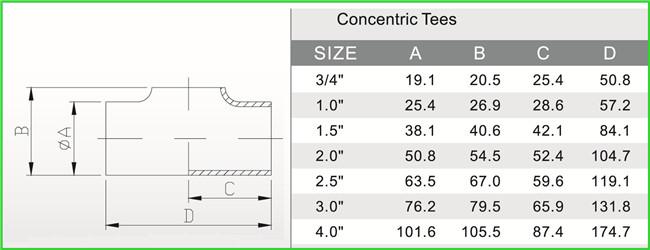

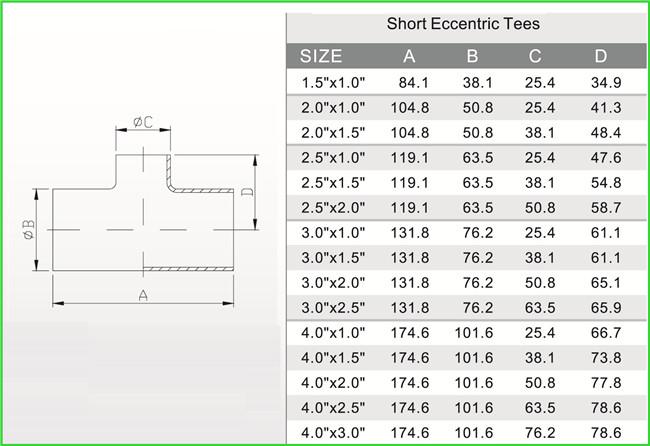

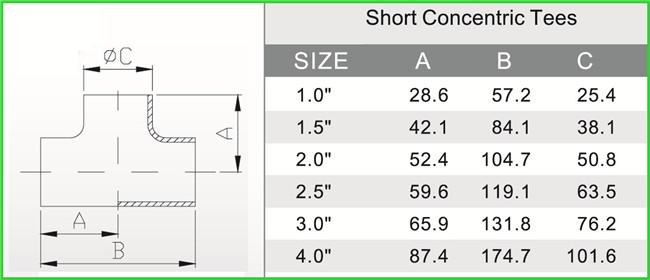

Dimensions:
