Safety Sanitary Butt Weld Fittings Straight Reducing Tee Fitting 1/4" ~ 6" ASME BPE Standard

1/4" ~ 6" ASME BPE Standard Sanitary Hygienic Stainless Steel Butt Weld Straight Reducing Tees Fittings

Product Description:

ASME BPE Butt weld tee fittings are designed especifically for pharmaceutical and biotechnology industries. These industries have very high requirements of hygiene, so we only use material of 316L stainless steel. The tees have butt weld ends, and can very simply welded to stainless steel pipes, in order to help change fluid flow direction. The branch port can be in same size as main port, and also can be smaller.

Features:

• 100% waterproof
• High mechanical resistance
• Effective corrosion protection of the tube
• Resistant against chemical mediums
• Trace mark available
• Very easy welding installation
• Save installation cost and time

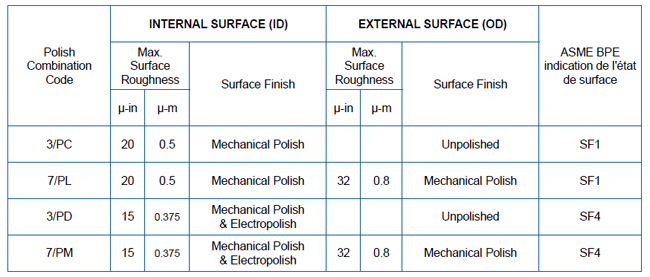

Surface Finishes:

Technical Details:

• Name: Sanitary Butt Weld Tees
• Material: 304 or 316L stainless steel
• Size: Long type 1/2" ~ 6"; Short type 1" ~ 4"
• Standards: 3A
• Main types: Concentric tee, Long / short concentric tee, short eccentric tee, 180 degree tee
• Working pressure: 10 bar
• Working temperature: -10 °C ~ +140 °C
• Surface treatment: Food grade Ra<0.8μm; pharmaceutical grade Ra<0.4μm

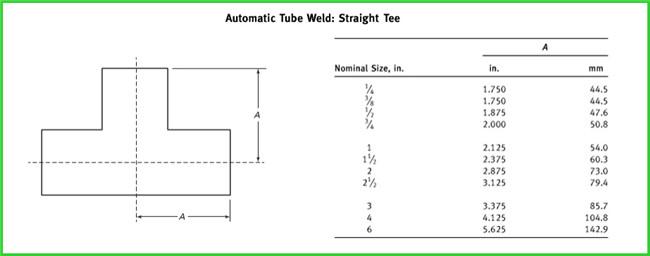

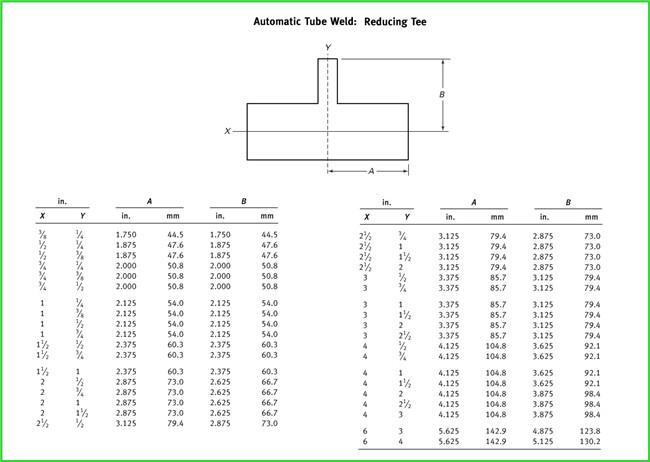

Dimensions:

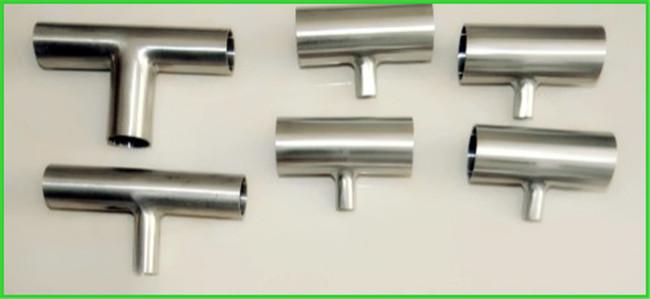

Product Photo Show:
