10 Bar Sanitary Butt Weld Fittings Short Tee Pipe Fitting DIN11852 DN10-200

DN10 ~ 200 DIN11852 Food & Chemical Grade Sanitary Hygienic Stainless Steel Butt Weld Short Tees Fittings

Product Description:

This type of reducers are designed according to DIN11852 standard. They have butt weld ends and will be manualy welded to stainless steel pipes in DIN11850 standard and DIN11866 series B.

The dimension of branch port can be in short type or standard type.

Surface roughness meets DIN EN ISO4288 Ra<0.8μm (internal) Ra<1.6μm (external & weld)

Raw materials:

Stainless steel 304 or 316L

1.4301 X5CrNi18-10

1.4307 X2CrNi18-9

1.4404 X2CrNiMo17-12-2

1.4432 X2CrNiMo17-12-3

Technical Details:

• Name: Sanitary Butt Weld Tees
• Material: 304 or 316L stainless steel
• Size: DN10 ~ DN200
• Standards: DIN11852
• Main types: Standard type, short type
• Working pressure: 10 bar
• Working temperature: -10 °C ~ +140 °C
• Surface treatment: Food grade Ra<0.8μm

Dimensions:

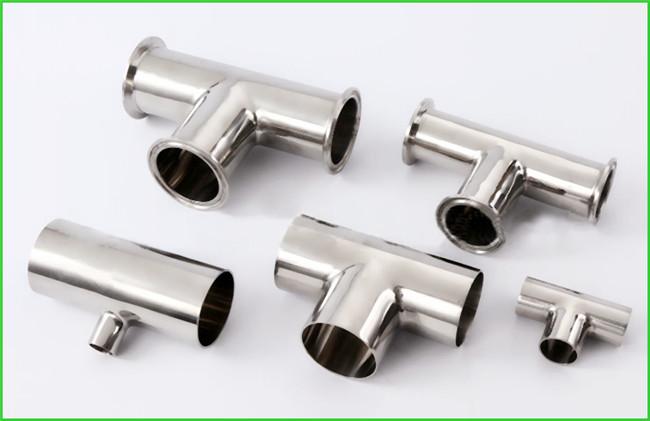

Product Photo Show:
