Chemical / Food Grade Bend Elbow Pipe Fitting , Stainless Steel Sanitary Pipe Fittings

DIN11852 Food & Chemical Grade Sanitary Hygienic Stainless Steel Butt Weld Bends Elbows Fittings

Raw Materials:

1.4301 X5CrNi18-10

1.4307 X2CrNi18-9

1.4404 X2CrNiMo17-12-2

1.4432 X2CrNiMo17-12-3

The above material equal to high quality SS304 and 316L stainless steel

Applications:

These bends are used to connect two stainless steel pipes together by manual weld, in order to make the fluid flow direction change.

These bends dimension are designed according to DIN11852 standard, and are installed in DIN11850 standard pipes only.

These bends fittings are widely used in hygienic industries like food, beverage, chemical, pharmacy and brewery, etc.

Main Types:

We have different bending degrees, 45 / 90 / 180 (U type) available

For different welding use, we can also supply short type and long type in dimension

Technical Details:

• Name: Sanitary Butt Weld Elbows / Bends
• Material: 304 or 316L stainless steel
• Size: DN10 ~ DN200
• Standards: DIN11852
• Main types: 45 degrees elbow, 90 degrees elbow, 180 degrees elbow, short and long type
• Working pressure: 10 bar
• Working temperature: -10 °C ~ +140 °C
• Surface treatment: Food grade Ra<0.8μm

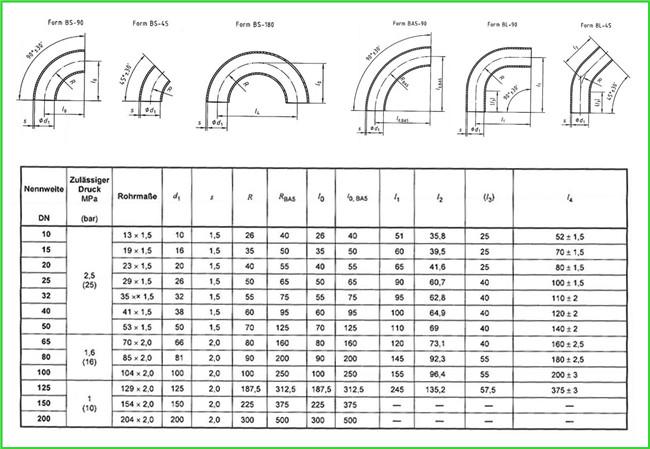

Dimensions:

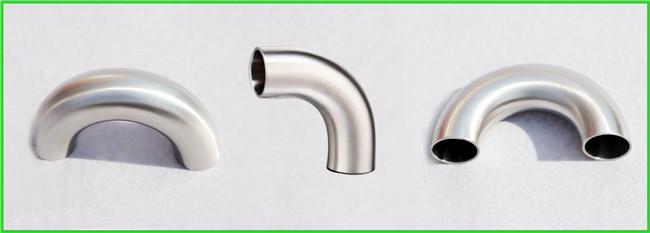

Product Photo:
