C-TOP Control Unit Type Sanitary Pneumatic Stainless Steel Butterfly Valve
Sanitary Hygienic Pneumatic Welded / Tri Clamped / Threaded Butterfly Valves With C-TOP Control Unit
Applications:
Sanitary pneumatic butterfly with C-TOP control unit is widely used in stainless steel piping system of production lines in all kinds of hygienic industries such as brewery, dairy, beverage, wine, pharmacy and fine chemical, etc.
Highlights:
1. Smart configuation design, easy to install and remove.
2. C-top control unit, with solenoid valve, 2pcs of position switch, and PCB, is convenient for on site installation.

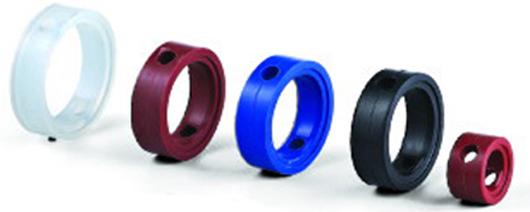

3. Adoption of best sealing parts with high resistant ability against acid, alkali and extreme temperature.
Material:
|
1. C-top enclosure: PP, PC, SS 2. Pneumatic actuator: SS304 |
 |
Working Principle:
This kind of valve is operated by pneumatic actuator, which is installed with an intelligent C-Top control unit. The pneumatic actuator converts the axial movement of its piston into the rotation of valve stem.
The valve is opened or closed accordingly to control and adjust medium flows in the pipeline.
The working mode of the actuator can be air / spring and air / air, with NO or NC condition.

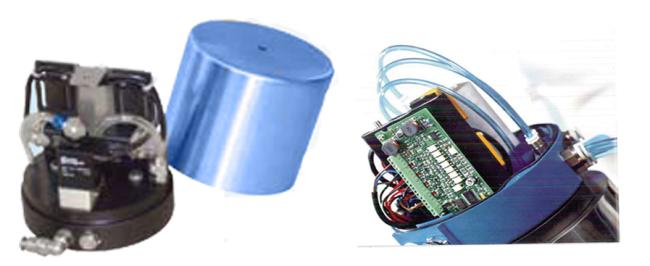

C - Top Intelligent Control Unit
Main parts: One solenoid valve, two position sensors, one PCB, and enclosure
Communication type: AS-i main line communication, or electronic communication
Input signal: AC 220V, or DC 24V; 3 Watt
Working principle: Communication between valves and control panel by receiving and sending signals with its monitoring and order devices.

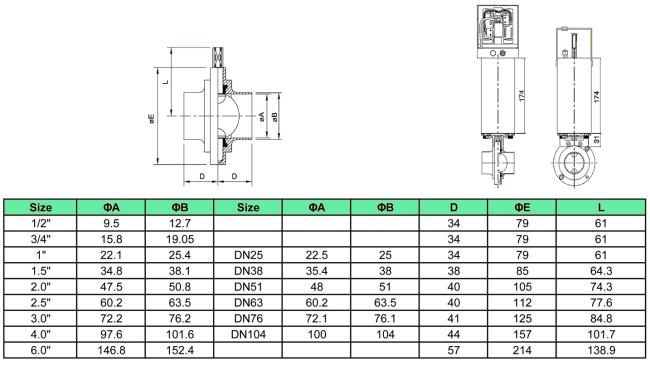

Valve Dimensions:
