1.4435 SS 316 Diaphragm Valve DN50 Sanitary Tank Bottom Valve
Price:
Negotiable
MOQ:
Sample order acceptable
Delivery Time:
1 - 2 weeks upon order quantity
Brand:
WLM
Product Description
1.4435 / 316L Stainless Steel Sanitary Tank Bottom Diaphragm Valves With Butt Weld Connection
Product Description:
The sanitary tank bottom diapharagm valves are used for medium draining and sampling in hygienic industries such as pharmacy, biotechnology, fine chemical, food, beverage, and so on. They are usually installed at the bottom of a hygienic tank or vessel, with 10 to 30 degrees angle against horizontal level, in order to have perfect self draining function without any fluid retention or leakage.
Specifications:
| Drive Model: | Manual type plastic turning knob |
| Size: | DN25 ~ 50 or other size on request |
| Steel Material: | 316L, hygienic design |
| Diaphragm Material: | EPDM or EPDM + PTFE |
| Max. Working Pressure: | 6 bar for PTFE seal, 10 bar for EPDM seal |
| Working Temperature: | 150ºC |
| Connection End | Butt weld |
| Surface Treatment: | Rg 0.4 ~ 0.6µm or electrolysis process |
| Clamp Standards: | EN 10357, DIN 11866, DIN 11850, ISO 2037 |
Advantages:
- Manual turning knob operation saves much cost
- Hygienic design and adoption of aseptic material to meet sanitary industries
- Surface finely finished by EP to reach roughness Ra<0.5μm
- Intelligently designed without dead leg, retention or leakage
- Strong self cleaning and automatic draining ability
Benefits from Butt Weld Connection End
- Butt welded to the tank bottom, to eliminate leakage and dead area
- Firm and strong connection with pipes, once for all
- Simple connection tehcnique, low cost
- Standard butt weld end dimension to match with most of pipe sizes

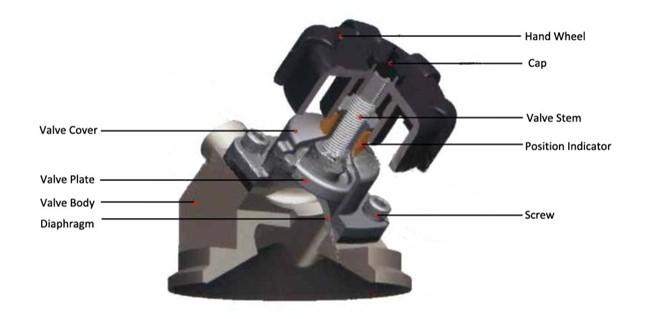

Configuration:
