Aseptic Pharmaceutical Diaphragm Valve Stainless Steel DN25

Name: Aseptic Pharmaceutical Diaphragm Valve Stainless Steel DN25
Brand: Linch Machinery Co. Ltd.

Price Negotiable

Price: Negotiable

MOQ: Sample order acceptable

Delivery Time: 1 - 2 weeks upon order quantity

Brand: WLM

Product Description

Pharmaceutical Grade 316L Stainless Steel Sanitary Aseptic Tri Clamp Tank Bottom Diaphragm Valves

Installation Angle:

The diaphragm type tank bottom valve should be installed on the bottom of tanks at the angle of 35 degrees, to make the medium in the tank be drained freely without any retention.

Specifications:

Drive Model:	Manual type plastic turning knob
Size:	DN25 ~ 50 or other size on request
Steel Material:	316L, hygienic design
Diaphragm Material:	EPDM or EPDM + PTFE
Max. Working Pressure:	6 ~ 10 bar
Working Temperature:	90 ºC ~ 150ºC
Connection End	Tri Clamp
Surface Treatment:	Rg 0.4 ~ 0.6µm or electrolysis process
Clamp Standards:	SMS 3017, DIN 11864, DIN 11853, DIN32676, BS 4825, ISO 2852
Application:	Pharmaceutical, WFI, Fine Chemical industries

Features:

Enforced plastic turning knob for frequent daily operation
316L stainless steel to meet highly aseptic grade, material certificate available
Surface finely finished by EP to reach roughness Ra<0.5μm
Intelligently designed without dead leg, retention or leakage
Installed at bottom of sanitary tanks for flow draining or sampling
Strong self cleaning and automatic draining ability

Benefits from Clamp Connection End

Fast loading and disassembly to save much more working time
Simply connected with pipe by a clamp, firm but detachable any time
In case of partial damage, no need to change the whole valve
Clamp end dimension complies with ISO, DIN, BS, SMS to suit for most of pipe sizes
Very convenient for daily maintenance and repair

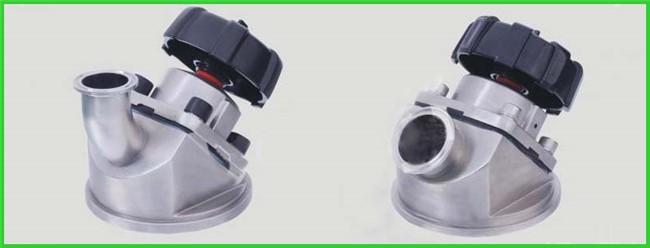

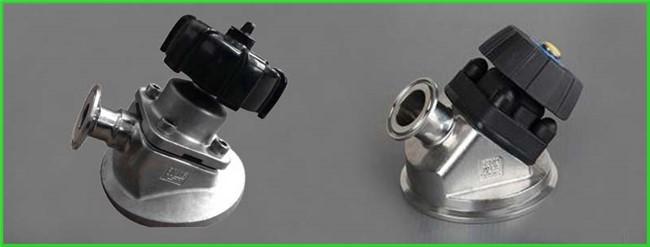

Product Show:
