GMP Compliant Pharmaceutical Sanitary Diaphragm Valve SS316L Tri Clamp

GMP compliant 316L Stainless Steel Sanitary Hygienic Diaphragm Valve for Pharmaceutical Industry

Quick Details:

• Opened and closed by rotating plastic turning knob
• NO (normally open) and NC (normally closed) modes available
• Easy to operate, cost effective and leak proof
• Widely used in pharmaceutical aseptic production lines

Technical Data:

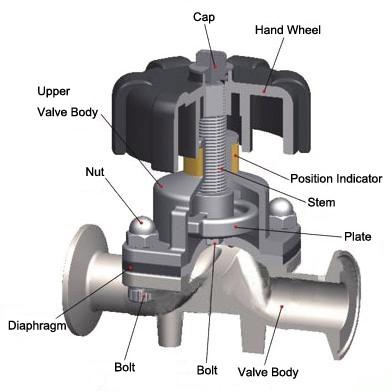

Features:

• Comply with GMP certification which is compulsory for food and drug administration
• The upper body and cavity are separated by the diaphragm to avoid the upper body from being contaminated by medium
• Diaphragm surface is smooth and wear-resistant, difficult to produce chemical or adsorption reaction with the medium, no retention or dead leg
• Highly hygienic level, sterile, automatic evacuation of medium, more beneficial to CIP/SIP process
• Suitable for bio-fermentation, pharmacy, high cleaness and high purity, WFI industries

Working Principle:

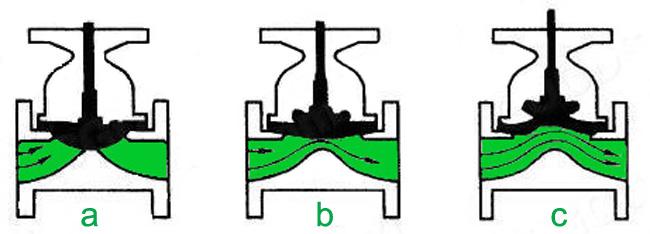

a. Rotate the handle to move the valve stem downward, close the valve

b. Rotate the handle upward to open the valve, the medium starts to pass throught the valve

c. Continue to rotate the handle upward until the valve opens completely, the medium passes through the valve

Configuration:

Self-draining Angle:

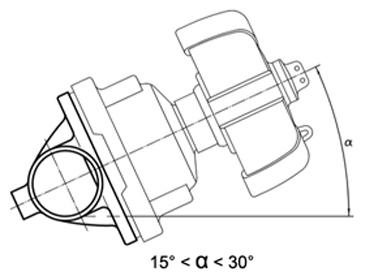

When installing diaphragm valve in the horizontal pipeline, the valve should be installed at 15-30 degrees with horizontal plane, to make fluid turbulent, in order to completely evacuate the medium and to prevent dead legs.
